Description:The 9FGV1001 is a member of Renesas' PhiClock™ programmable clock generator family. The 9FGV1001 provides four non-spread-spectrum copies of a single output frequency and two copies of the crystal reference input. Two select pins allow for hardware selection of the desired configuration, or two I²C bits allow easy software selection of the desired configuration. The user may configure any one of the four OTP configurations as the default when operating in I²C mode. Four unique I²C addresses are available,
Renesas provides a reference design guide for the 9FGV1001C001NBGI, which includes recommendations for PCB layout, thermal management, and decoupling. It's essential to follow these guidelines to ensure optimal performance, low noise, and high reliability.
Renesas recommends using a power sequencing controller, such as the ISL91211A, to ensure proper power-up and power-down sequencing. Additionally, a reset circuitry, like the ones described in the datasheet, should be implemented to ensure a clean reset signal.
The recommended PLL and clock configuration settings can be found in the 9FGV1001C001NBGI datasheet and the Renesas FPGA development tools, such as the Cubic IDE. It's essential to follow these settings to ensure proper clocking and PLL operation.
To optimize the 9FGV1001C001NBGI for low power consumption, implement power gating, clock gating, and dynamic voltage and frequency scaling (DVFS). Additionally, use the Renesas Power Analyzer tool to analyze and optimize power consumption.
When using the 9FGV1001C001NBGI in high-reliability applications, consider the device's radiation tolerance, latch-up immunity, and single-event upset (SEU) mitigation. Renesas provides guidelines and resources for designing high-reliability systems using the 9FGV1001C001NBGI.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
9FGV1001C001NBGI Overview

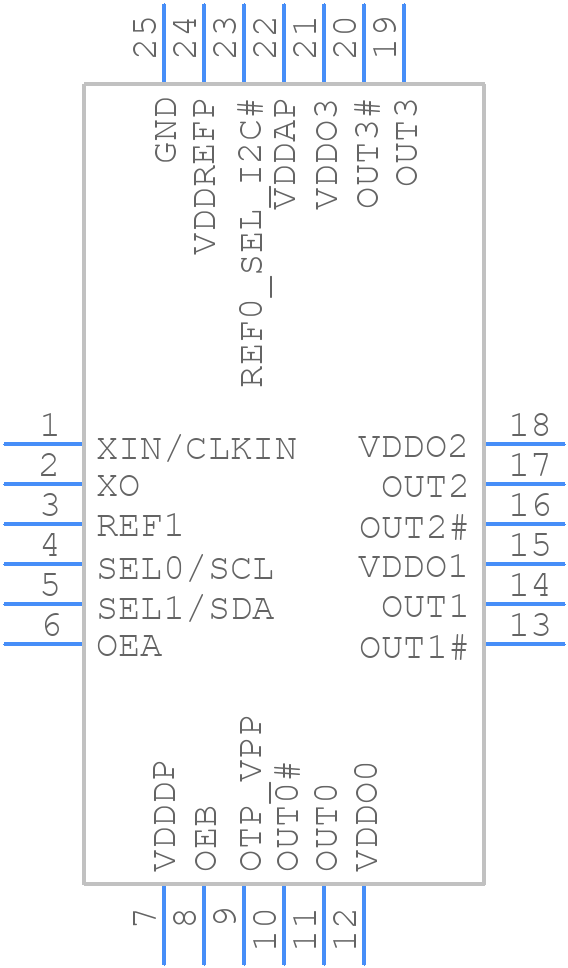

Use the download button to access the 9FGV1001C001NBGI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9FGV1,
or try a keyword search, such as Clock Generators
