9FGV1006CQ505LTGI - Renesas Electronics

Description: Clock Generator IC 200MHz, 325MHz 1 16-TFLGA Exposed Pad

Download 9FGV1006CQ505LTGI Model

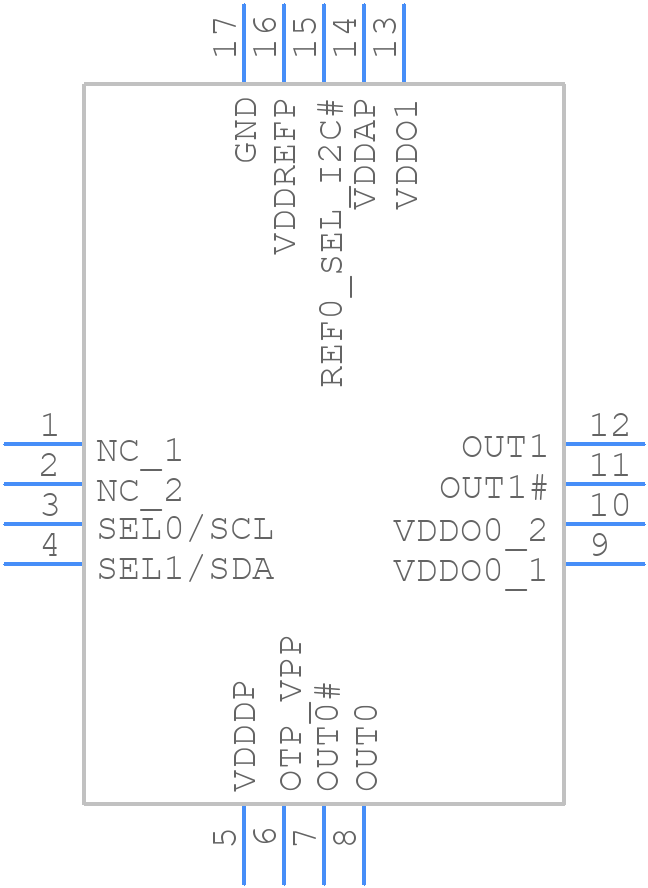

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
9FGV1006CQ505LTGI - Renesas Electronics PCB footprint - Other - Other - 9FGV1006CQ505LTGI-2
click to zoom
3D Models
9FGV1006CQ505LTGI - Renesas Electronics  - 3D model - Other - 9FGV1006CQ505LTGI-2
click to zoom

9FGV1006CQ505LTGI Details

  • Manufacturer Part Number:

    9FGV1006CQ505LTGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LGA

  • Pin Count:

    16

  • Manufacturer Package Code:

    LTG16P2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    15

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PCIe

9FGV1006CQ505LTGI Frequently Asked Questions (FAQs)

  • Renesas provides a reference design guide for the 9FGV1006CQ505LTGI, which includes recommendations for PCB layout, thermal management, and decoupling. It's essential to follow these guidelines to ensure optimal performance, reduce noise, and prevent thermal issues.
  • The 9FGV1006CQ505LTGI requires a specific power sequencing and voltage regulation scheme. Renesas recommends using a power management IC (PMIC) specifically designed for the FPGA, such as the Renesas ISL69244. The PMIC should be configured according to the FPGA's power requirements and sequencing guidelines.
  • While the internal oscillator can be used as a clock source, it's essential to consider its limitations, such as frequency accuracy, jitter, and temperature dependence. For high-speed or critical applications, it's recommended to use an external clock source or a more accurate oscillator. Additionally, the internal oscillator should be properly configured and calibrated according to the datasheet guidelines.
  • To optimize power consumption and reduce heat generation, it's essential to implement power-saving techniques, such as clock gating, dynamic voltage and frequency scaling, and power gating. Additionally, optimizing the FPGA's design, using low-power modes, and reducing switching activity can also help minimize power consumption and heat generation.
  • To ensure signal integrity and minimize noise and crosstalk, it's essential to follow best practices for PCB design, such as using differential signaling, impedance matching, and proper termination. Additionally, using shielding, guard rings, and separating analog and digital signals can help reduce noise and crosstalk.
