Description:An enormous number of Internet connected devices use Intel’s Atom™ CPU. While some of these devices are in familiar applications, like desktop and notebook PCs, many Atom CPUs are used in embedded applications such as communications equipment, industrial control, and micro-servers. IDT has the industry’s broadest line of ‘Atomic’ clocks so that no matter what the application, IDT has the perfect clocking device.The datasheet for the 9VRS4338 is available under NDA . Please contact your local IDT sales offic
Renesas provides a recommended PCB layout guide in their application notes (e.g., AN9834) and evaluation board documentation. It's essential to follow these guidelines to ensure proper signal integrity, noise reduction, and thermal management.
The output capacitor selection depends on the specific application requirements, such as output voltage, current, and ripple. Renesas recommends using a low-ESR capacitor with a value between 10uF to 22uF. A higher capacitance value can help reduce output voltage ripple, but may increase the startup time.
The 9VRS4338DKLF is rated for operation up to 105°C ambient temperature. However, it's essential to consider the thermal design and heat dissipation in the system to ensure reliable operation within the specified temperature range.
Yes, the 9VRS4338DKLF is AEC-Q100 qualified, making it suitable for automotive and high-reliability applications. However, it's crucial to follow Renesas' guidelines for design, manufacturing, and testing to ensure compliance with the required standards.
Renesas provides troubleshooting guides and application notes (e.g., AN9835) that cover common issues and their solutions. It's essential to follow a systematic approach to identify and resolve the root cause of the problem, including checking the PCB layout, component selection, and design parameters.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
9VRS4338DKLF Overview

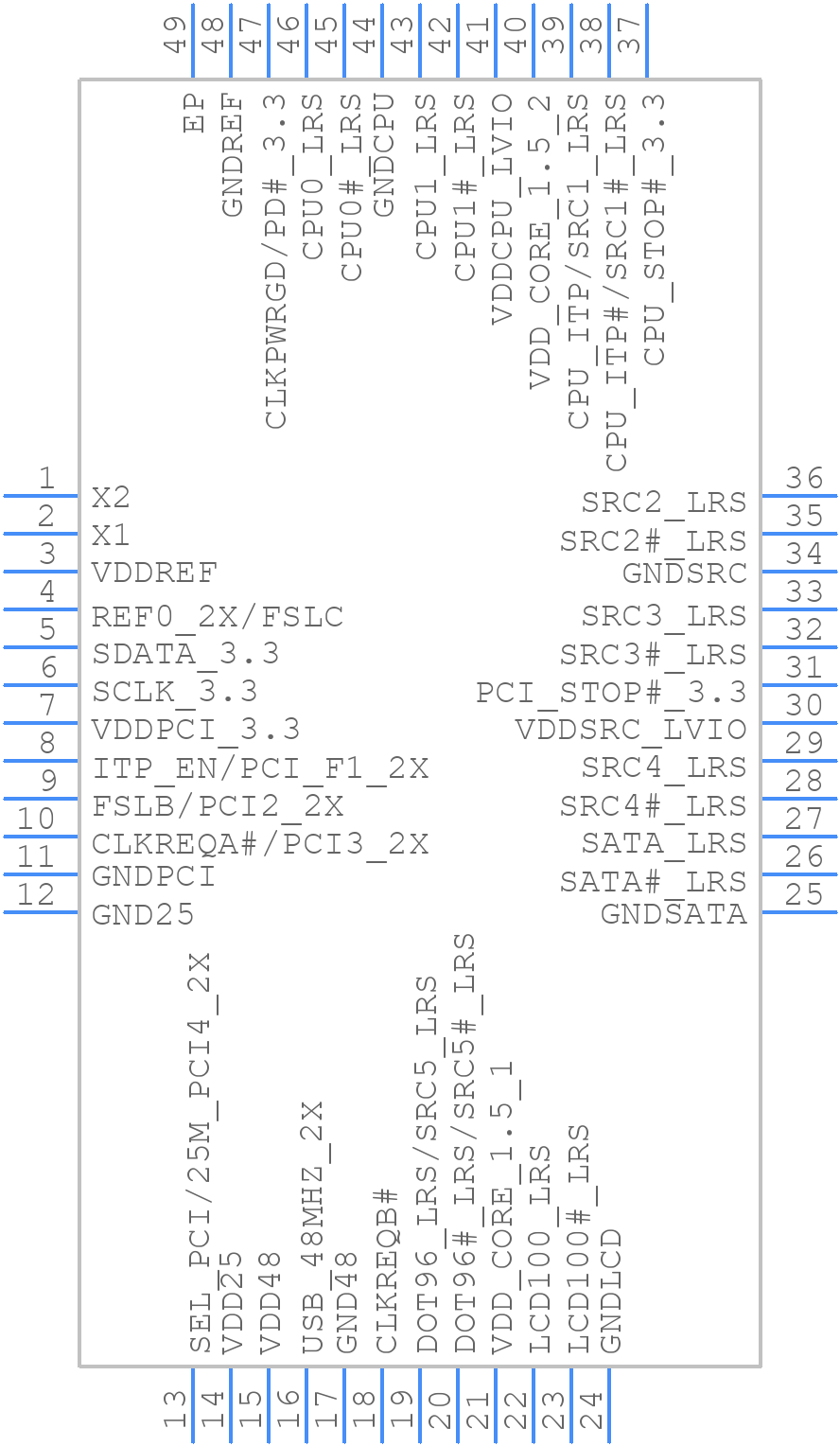

Use the download button to access the 9VRS4338DKLF schematic symbol, PCB footprint, and 3D model.
