Description:The 9ZXL0451E is a second-generation enhanced performance DB800ZL derivative for PCIe Gen 4 and 5 applications. In fanout (bypass) mode, it is DB2000Q compatible. A fixed external feedback in zero-delay buffers (ZDB) mode maintains low drift for critical QPI/UPI.
Renesas provides a recommended PCB layout guide in their application notes (e.g., AN1841) and design guides (e.g., DG-00234). It's essential to follow these guidelines to ensure optimal performance, minimize noise, and reduce EMI.
The 9ZXL0451EKILF has a thermal pad on the bottom, which requires a thermal interface material (TIM) for heat dissipation. Ensure a good thermal connection to a heat sink or a metal core PCB. Follow Renesas' thermal design guidelines and consider using thermal simulation tools to optimize your design.
The datasheet provides general guidelines, but Renesas recommends using X5R or X7R ceramic capacitors with a voltage rating of 10V or higher for the input and output capacitors. The capacitor values and types may vary depending on the specific application and operating conditions.
Follow Renesas' EMC guidelines and application notes (e.g., AN1842) for proper PCB layout, component selection, and shielding. Ensure that your design meets the relevant EMC standards (e.g., CISPR 22, FCC Part 15) for your target market.
The configuration pins (e.g., EN, SYNC, and MODE) require specific settings for proper operation. Refer to the datasheet and application notes (e.g., AN1843) for recommended settings and configuration options. Ensure that your design meets the specific requirements for your application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
9ZXL0451EKILF Overview

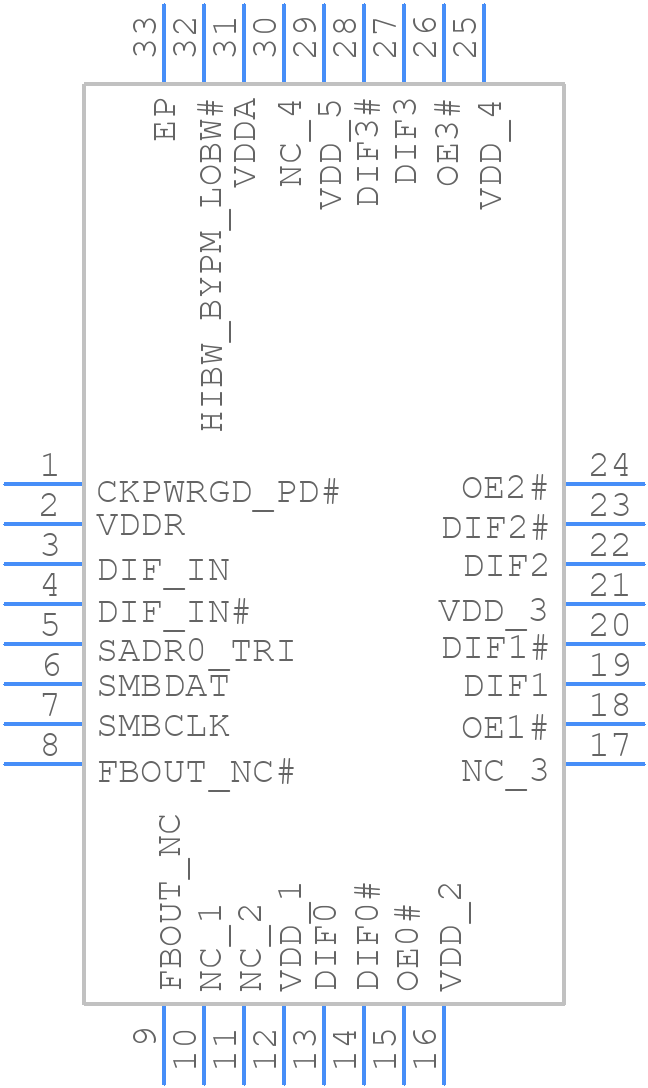

Use the download button to access the 9ZXL0451EKILF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9ZXL0,
or try a keyword search, such as Clock Drivers
