Description:The 9ZXL0632E is a second-generation, enhanced-performance DB800ZL differential buffer. The part is functionally compatible to the 9ZXL0632A, while offering a much improved phase jitter performance. A fixed external feedback maintains low drift for critical QPI/UPI applications. The 9ZXL0632E has an SMBus Write Lockout pin for increased device and system security.
Renesas provides a recommended PCB layout guide in their application notes (e.g., AN98374) and design guides (e.g., DG0094). It's essential to follow these guidelines to ensure optimal performance, minimize noise, and reduce electromagnetic interference (EMI).
The 9ZXL0632EKILF has a thermal pad on the bottom, which requires proper thermal management. Renesas recommends using a thermal interface material (TIM) and a heat sink to keep the junction temperature below 125°C. A thermal design guide is available in the datasheet and application notes.
The input clock signal should meet the specifications outlined in the datasheet, including frequency, amplitude, and jitter. Renesas recommends using a high-quality clock source, such as a crystal oscillator or a phase-locked loop (PLL), to ensure reliable operation.
The 9ZXL0632EKILF has various power-saving modes, such as sleep mode and standby mode. To configure the device for low-power operation, refer to the datasheet and application notes for specific register settings and programming guidelines.
The internal voltage regulator requires proper configuration to ensure stable operation. Renesas provides recommended settings for the voltage regulator in the datasheet and application notes, including voltage output, current limit, and power-up sequencing.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
9ZXL0632EKILF Overview

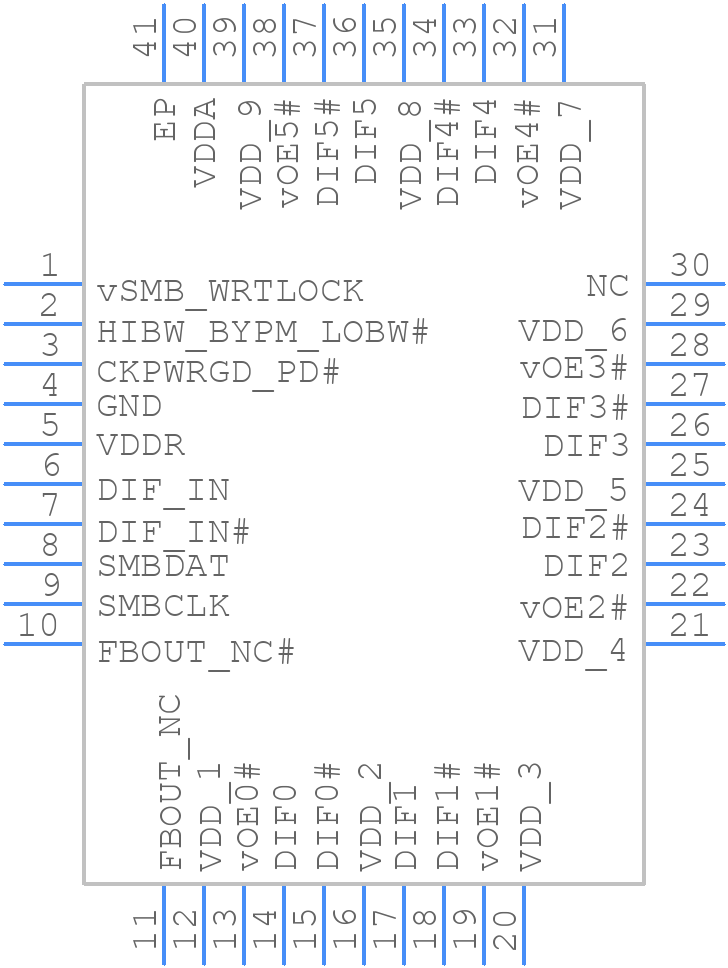

Use the download button to access the 9ZXL0632EKILF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9ZXL0,
or try a keyword search, such as Clock Drivers
