Description:The 9ZXL0652E is a second-generation, enhanced-performance DB800ZL differential buffer. The part is functionally compatible to the 9ZXL0652A, while offering a much improved phase jitter performance. A fixed external feedback maintains low drift for critical QPI/UPI applications. The 9ZXL0652E has an SMBus Write Lockout pin for increased device and system security.
Renesas provides a recommended PCB layout guide in their application notes (e.g., AN98374) and design guides (e.g., DG-00945). It's essential to follow these guidelines to ensure optimal performance, minimize noise, and reduce EMI.
Renesas recommends a specific power sequencing scheme to ensure proper device operation. This information can be found in the device's datasheet, application notes, or design guides. Typically, it involves powering up the device in a specific order, such as VCC, VDD, and then VREF.
The 9ZXL0652EKILF has a thermal junction-to-case rating of 30°C/W. To ensure reliable operation, it's essential to implement proper thermal management, such as using a heat sink, thermal interface material, and ensuring good airflow. Renesas provides thermal design guidelines in their application notes and design guides.
Renesas recommends implementing electrostatic discharge (ESD) protection measures to prevent damage to the device. This can include using ESD protection diodes, resistors, and capacitors in the PCB design, as well as following proper handling and storage procedures.
While the datasheet provides the absolute maximum ratings, it's essential to operate the device within the recommended operating conditions to ensure reliable performance. These conditions can be found in the datasheet or application notes and typically include voltage, current, and temperature ranges.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
9ZXL0652EKILF Overview

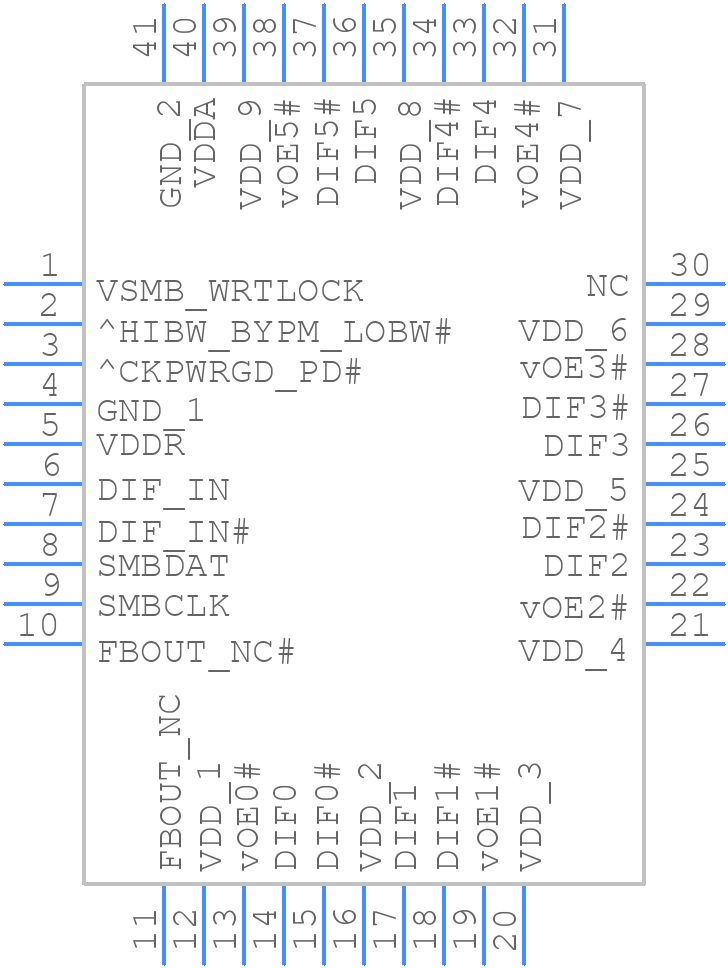

Use the download button to access the 9ZXL0652EKILF schematic symbol, PCB footprint, and 3D model.
