Description:The 9ZXL0652E is a second-generation, enhanced-performance DB800ZL differential buffer. The part is functionally compatible to the 9ZXL0652A, while offering a much improved phase jitter performance. A fixed external feedback maintains low drift for critical QPI/UPI applications. The 9ZXL0652E has an SMBus Write Lockout pin for increased device and system security.
Renesas provides a recommended PCB layout guide in their application note (R01AN4461EJ0100) which includes thermal design considerations, such as thermal vias, copper pours, and component placement.
Renesas recommends a specific power sequencing scheme in their application note (R01AN4461EJ0100) to ensure proper startup and shutdown of the device. This includes sequencing the power supplies, clock signals, and reset signals.
Renesas recommends using high-quality, low-ESR decoupling capacitors with a value of 10uF to 22uF, placed as close as possible to the power pins of the device. The application note (R01AN4461EJ0100) provides more detailed guidance on decoupling capacitor selection and placement.
Renesas provides a troubleshooting guide in their application note (R01AN4461EJ0100) which covers common issues, such as power-on reset, clock signal integrity, and signal quality. Additionally, Renesas offers a range of development tools and software to aid in debugging and troubleshooting.
Renesas provides thermal design guidelines in their application note (R01AN4461EJ0100) which include thermal resistance, junction temperature, and power dissipation. The note also provides guidance on thermal interface materials, heat sinks, and airflow considerations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
9ZXL0652EKILFT Overview

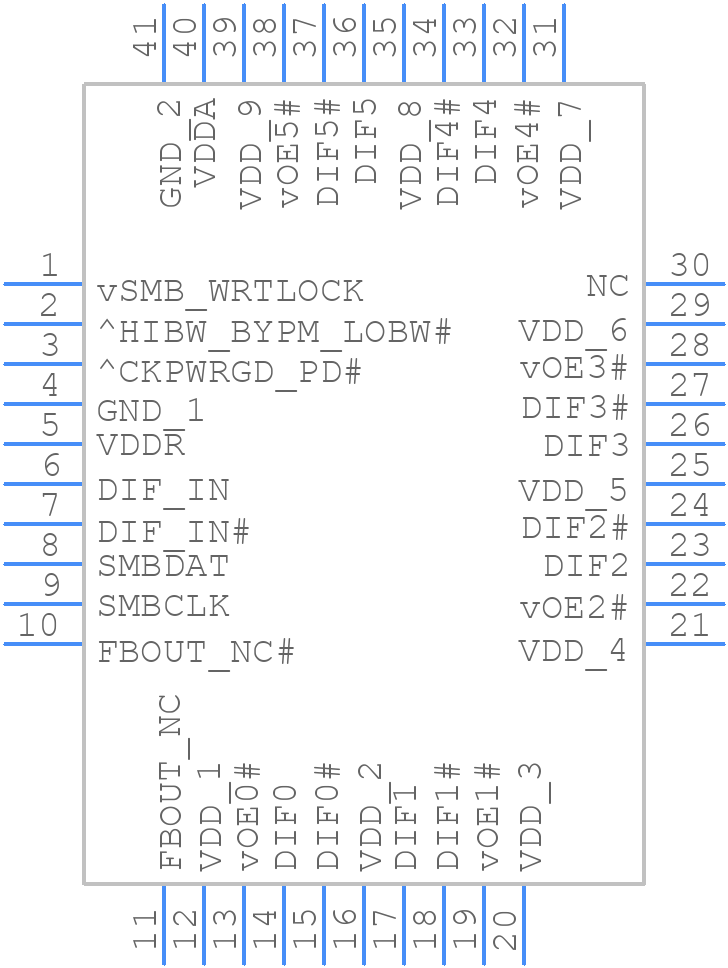

Use the download button to access the 9ZXL0652EKILFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 9ZXL0,
or try a keyword search, such as Clock Drivers
