Part Image

A-394E - Paralight

Description: Para Light A-394E 7 Segment LED Displays,75 mW,25 mA,628 nm,5 V ,－35C to 85C

Download A-394E Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this A-394E model

Email notifications will be applied after download.

Send part feedback

Symbol

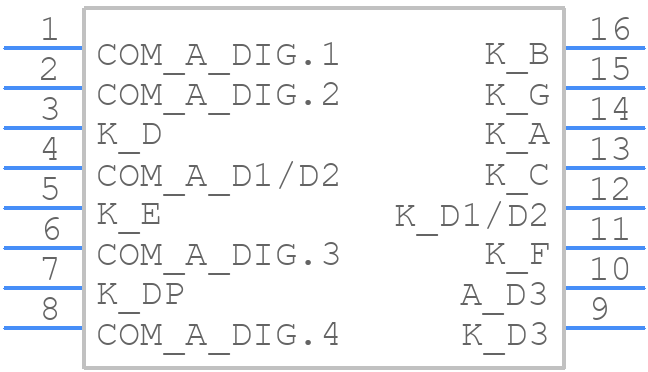

A-394E - Paralight - PCB symbol

PCB Footprints

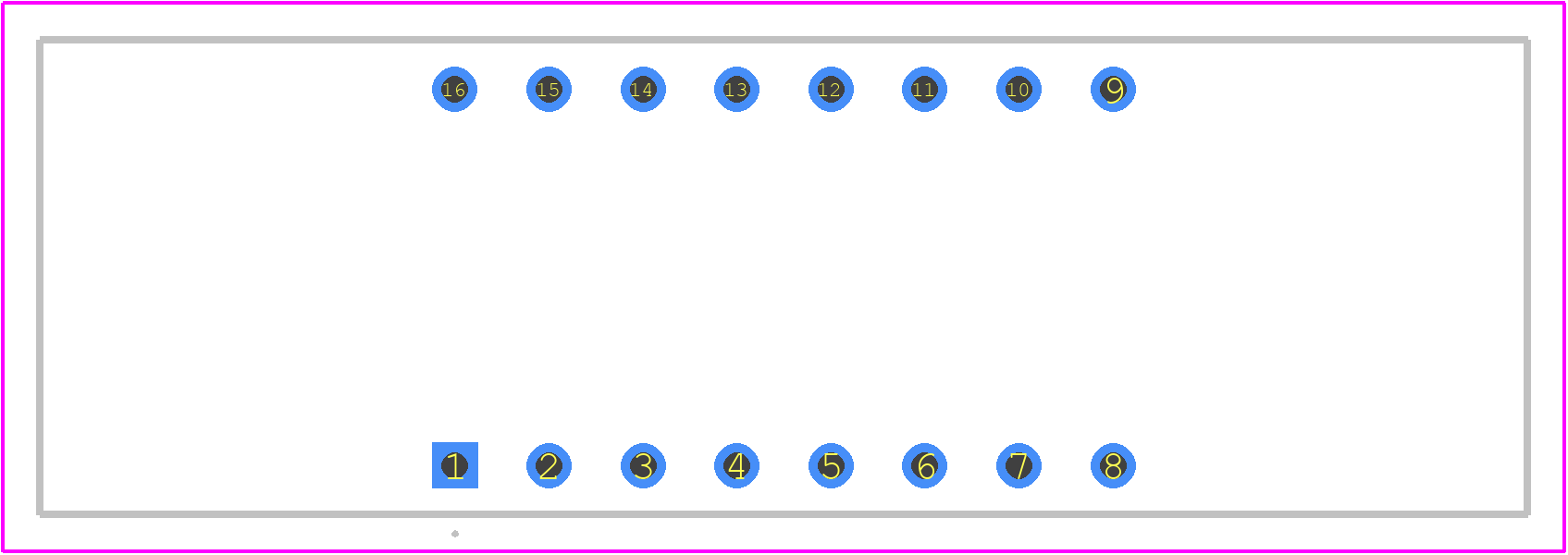

A-394E - Paralight PCB footprint - Other - Other - A-394E-2

3D Models

A-394E - Paralight - 3D model - Other - A-394E-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for A-394E
Part Number A-394E
Manufacturer Paralight
Pin Count 16
Part Category Display
Package Category Other
Footprint Name Other - A-394E-2
Released Date Jul 10, 2026
Last Modified Date Jul 10, 2026 6:31 AM UTC
Pinout / Pin List Click Here (Member Only)

A-394E Details

Manufacturer Part Number:
A-394E
Part Life Cycle Code:
Contact Manufacturer
HTS Code:
8541.40.20.00
Manufacturer:
PARA LIGHT

Trust Checks

Community Provided

System Verified

Community Approved

A-394E Overview

Use the download button to access the A-394E schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like A-394, or try a keyword search, such as LED Displays
