PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for A-564SR
- Part Number A-564SR
- Manufacturer Paralight
- Pin Count 12
- Part Category Display
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - 12-Lead Dip
- Released Date Aug 10, 2023
- Last Modified Date Aug 10, 2023 3:05 PM UTC
- Pinout / Pin List Click Here (Member Only)
A-564SR Details
-
Manufacturer Part Number:
A-564SR
-
Part Life Cycle Code:
Contact Manufacturer
-
HTS Code:
8541.40.20.00
-
Manufacturer:
PARA LIGHT
A-564SR Frequently Asked Questions (FAQs)
-
The recommended storage temperature for A-564SR is -20°C to 30°C (-4°F to 86°F) to prevent degradation of the LED's optical and electrical characteristics.
-
Yes, A-564SR is suitable for outdoor applications, but it's recommended to use a suitable enclosure or protective coating to prevent moisture and dust ingress, as it's not IP67 rated.
-
The maximum allowable voltage for A-564SR is 5.5V, exceeding which may cause permanent damage to the LED.
-
It's recommended to handle A-564SR with ESD-protective equipment and follow proper ESD-handling procedures to prevent damage from static electricity.
-
A-564SR is rated for operation up to 85°C (185°F), but its performance and lifespan may be affected at higher temperatures. It's recommended to derate the current and voltage at higher temperatures.
Trust Checks
Community Provided
System Verified
Community Approved
A-564SR Overview

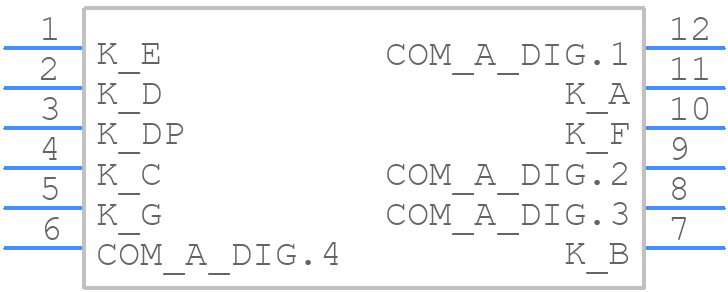

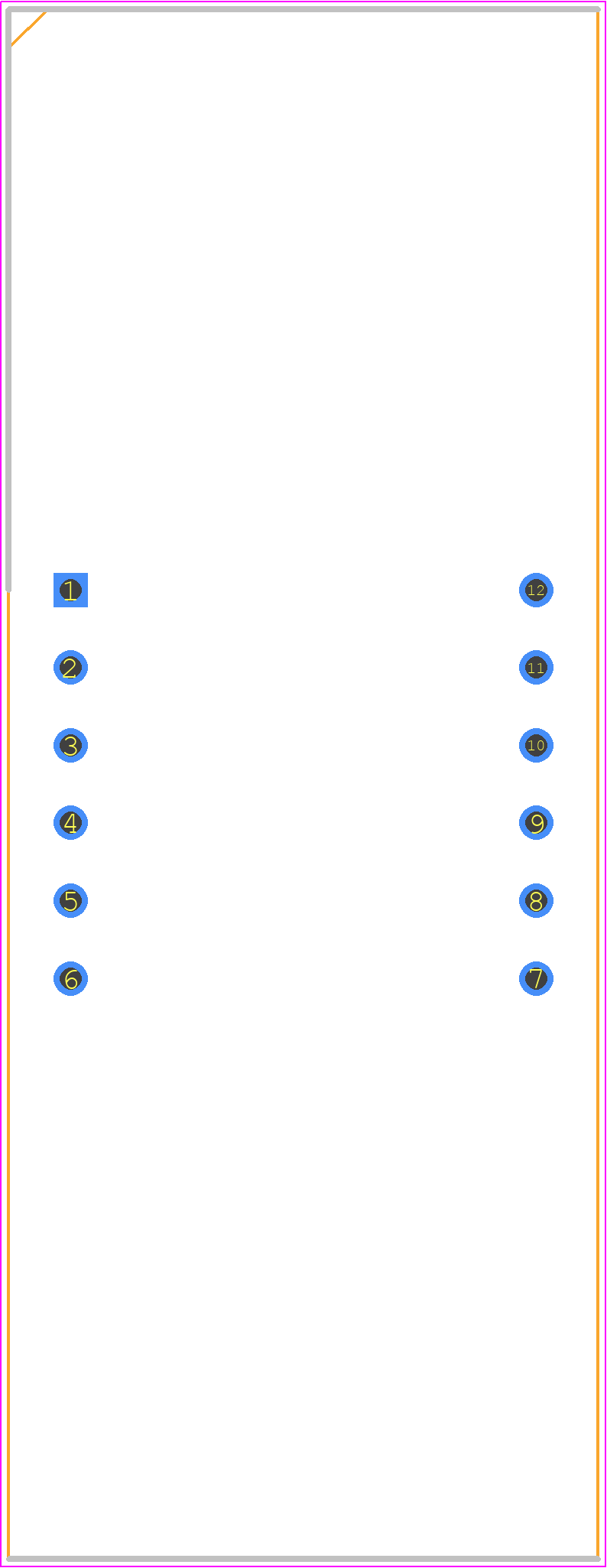

Use the download button to access the A-564SR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like A-564,
or try a keyword search, such as LED Displays
