A-DS15PP-WP-R - ASSMANN WSW components GmbH

A-DS15PP-WP-R Details

• Manufacturer Part Number:

  A-DS15PP-WP-R

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  ASSMANN WSW components GmbH

• YTEOL:

  0

• Additional Feature:

  ROHS COMPLIANT

• Body Breadth:

  0.827 inch

• Body Depth:

  0.309 inch

• Body Length:

  1.882 inch

• Body/Shell Style:

  RECEPTACLE

• Contact Finish Mating:

  AU

• Contact Gender:

  MALE

• Contact Material:

  COPPER ALLOY

• Contact Pattern:

  STAGGERED

• Contact Style:

  RND PIN-SKT

• Insulator Color:

  BLACK

• Insulator Material:

  POLYBUTYLENE TEREPHTHALATE

• Mounting Option 1:

  #4-40

• Mounting Option 2:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Option:

  GENERAL PURPOSE

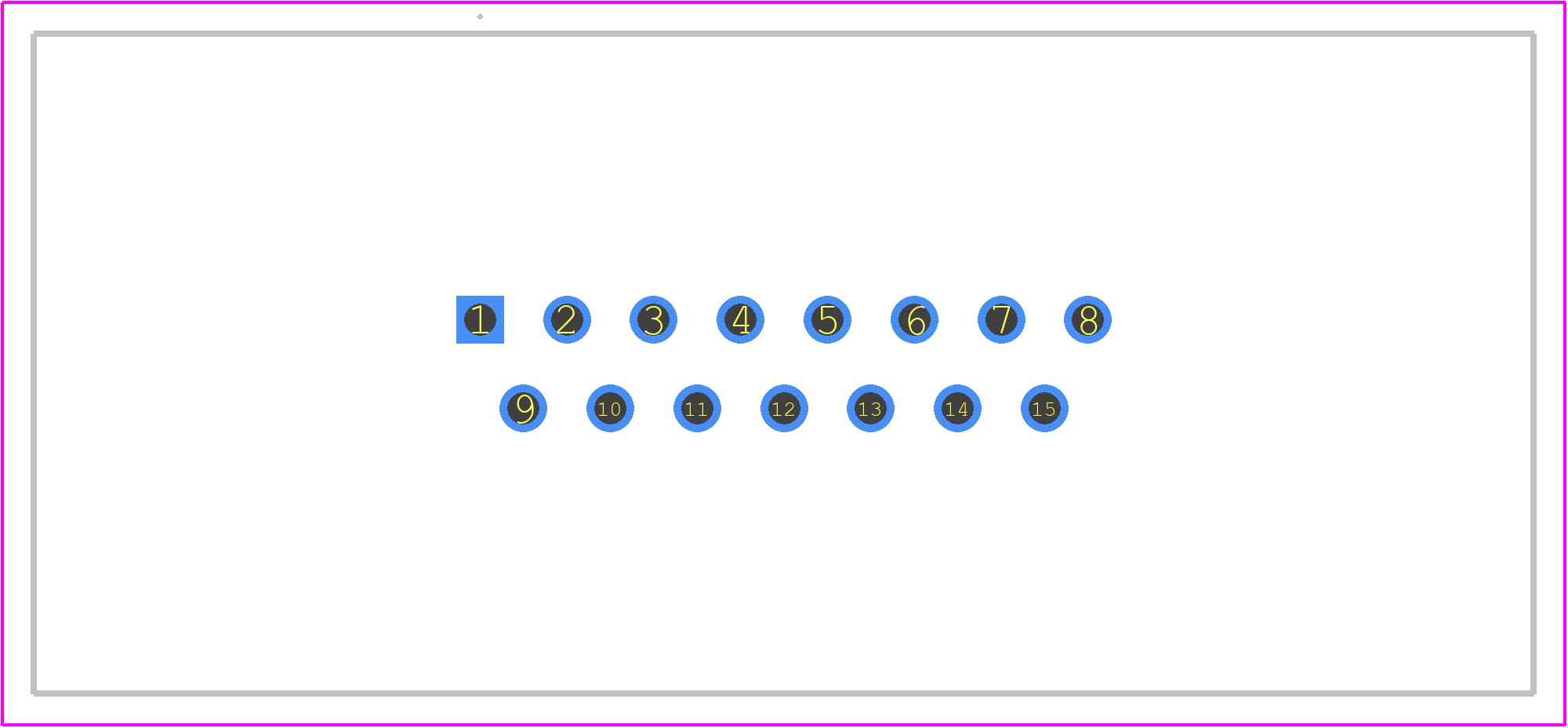

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.8448 mm

• Reference Standard:

  UL

• Terminal Length:

  0.167 inch

• Terminal Pitch:

  2.7686 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  15
