A1-16PA-2.54DSA(71) - Hirose

Description: Connector,Header,Straight,A1series,16P Hirose A1 Series, 2.54mm Pitch 16 Way 2 Row Straight Pin Header, Through Hole, Solder Termination

Download A1-16PA-2.54DSA(71) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
A1-16PA-2.54DSA(71) - Hirose - PCB symbol
click to zoom
PCB Footprints

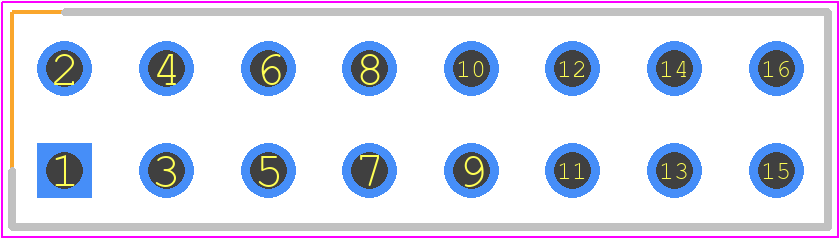

A1-16PA-2.54DSA(71) - Hirose PCB footprint - Header, Vertical - Header, Vertical - A1-16PA-2.54DSA
click to zoom
3D Models
A1-16PA-2.54DSA(71) - Hirose - 3D model - Header, Vertical - A1-16PA-2.54DSA
click to zoom

A1-16PA-2.54DSA(71) Details

  • Manufacturer Part Number:

    A1-16PA-2.54DSA(71)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    9

  • Connector Type:

    BOARD CONNECTOR

A1-16PA-2.54DSA(71) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m, as specified in the Hirose Electric Co Ltd's application notes.
  • Yes, the A1-16PA-2.54DSA(71) is designed to withstand vibrations and is suitable for use in high-vibration environments, such as in automotive or industrial applications.
  • The maximum operating temperature for the A1-16PA-2.54DSA(71) is 125°C, as specified in the datasheet.
  • Yes, the A1-16PA-2.54DSA(71) is compatible with lead-free soldering processes, making it suitable for use in modern electronic assemblies.
  • The recommended mating cycle for the A1-16PA-2.54DSA(71) is 500 cycles, as specified in the datasheet.
