A1006TL/TA1NXZ - NXP

Description: Security ICs / Authentication ICs Secure Authenticator

Download A1006TL/TA1NXZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

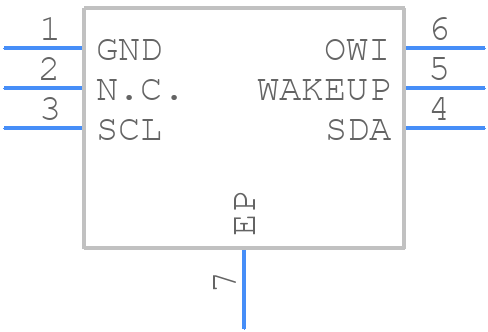

A1006TL/TA1NXZ - NXP - PCB symbol
click to zoom
PCB Footprints
A1006TL/TA1NXZ - NXP PCB footprint - Small Outline No-lead - Small Outline No-lead - HXSON6
click to zoom
3D Models
A1006TL/TA1NXZ - NXP - 3D model - Small Outline No-lead - HXSON6
click to zoom

A1006TL/TA1NXZ Details

  • Manufacturer Part Number:

    A1006TL/TA1NXZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HXSON-6

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-N6

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.62 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

A1006TL/TA1NXZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the A1006TL/TA1NXZ should consider the following: keep the input and output traces short and symmetrical, use a solid ground plane, and place decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure EMC, follow these guidelines: use a shielded enclosure, keep the device away from high-frequency sources, use a common-mode choke on the input, and add a ferrite bead on the output. Additionally, ensure that the PCB layout is optimized for minimal radiation.
  • A 10uF to 22uF X7R or X5R ceramic capacitor is recommended for the input. The capacitor should be placed as close as possible to the device's input pins. The capacitor value and type may vary depending on the specific application and input voltage.
  • The A1006TL/TA1NXZ has a thermal pad on the bottom. Ensure good thermal contact between the device and the PCB by using a thermal interface material (TIM) and a heat sink if necessary. Keep the device away from heat sources and ensure good airflow around the device.
  • A 10uF to 22uF X7R or X5R ceramic capacitor is recommended for the output. The capacitor value and type may vary depending on the specific application and output voltage. The output capacitor should be placed as close as possible to the device's output pins.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A1006TL/TA1NXZ Overview

Use the download button to access the A1006TL/TA1NXZ schematic symbol, PCB footprint, and 3D model.
