A103MD9AQ04 - TE Connectivity

A103MD9AQ04 Details

• Manufacturer Part Number:

  A103MD9AQ04

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Manufacturer:

  TE Connectivity

• YTEOL:

  0

• Actuator Length:

  0.27 inch

• Actuator Type:

  SHORT TYPE

• Body Breadth:

  12.7 mm

• Body Height:

  6.86 mm

• Body Length or Diameter:

  12.7 mm

• Bushing Diameter:

  0.25 inch

• Bushing Length:

  0.28 inch

• Bushing Type:

  UNTHREADED

• Contact (AC) Max Rating R Load:

  5A@120VAC

• Contact Current(AC)-Max:

  5 A

• Contact Current(DC)-Max:

  5 A

• Contact (DC) Max Rating R Load:

  5A@28VDC

• Contact Voltage(AC)-Max:

  120 V

• Contact Voltage(DC)-Max:

  28 V

• Electrical Life:

  6000 Cycle(s)

• Illumination:

  NON-ILLUMINATED

• Mounting Feature:

  THROUGH HOLE-RIGHT ANGLE

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

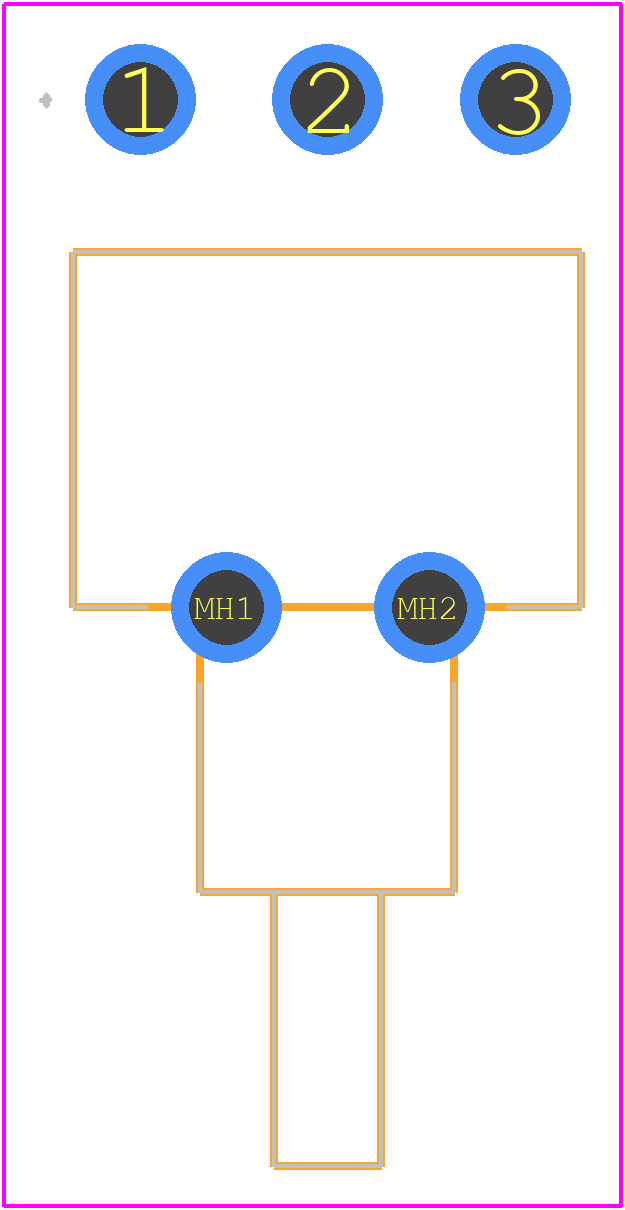

• PCB Hole Count:

  5

• Sealing:

  EPOXY TERMINAL SEALED

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  SPDT

• Switch Type:

  TOGGLE SWITCH

• Termination Type:

  SOLDER
