A111-001-T&R - Acconeer AB

Description: IC SENSOR PCR RADAR 60GHZ CSP

Download A111-001-T&R Model

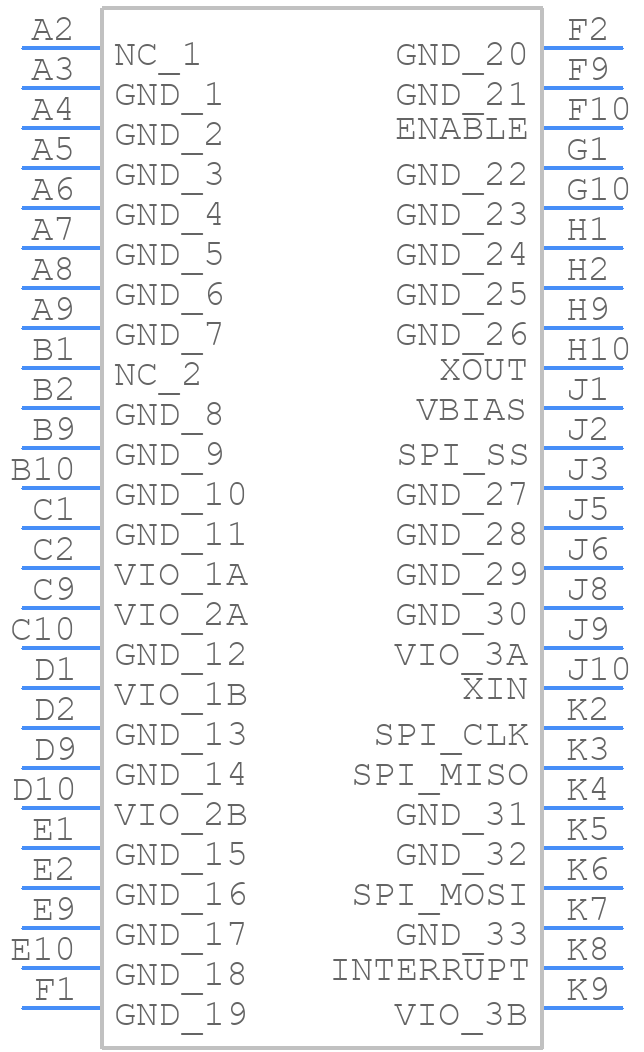

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A111-001-T&R - Acconeer AB PCB footprint - Other - Other - 50-FCCSP (5.5x5.2)
click to zoom
3D Models
A111-001-T&R - Acconeer AB  - 3D model - Other - 50-FCCSP (5.5x5.2)
click to zoom

A111-001-T&R Details

  • Manufacturer Part Number:

    A111-001-T&R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    FCCSP-50

  • Manufacturer:

    Acconeer AB

  • Body Breadth:

    5.2 mm

  • Body Height:

    0.899 mm

  • Body Length or Diameter:

    5.5 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    50

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0.4-1.6V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    BGA50,10X10,20

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    SENSOR MODULE

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Surface Mount:

    YES

A111-001-T&R Frequently Asked Questions (FAQs)

  • Acconeer provides a reference design and layout guidelines in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, especially for the antenna design and placement.
  • The A111-001-T&R uses a proprietary algorithm to mitigate multipath interference. Additionally, Acconeer recommends using a combination of techniques such as spatial diversity, frequency hopping, and adaptive thresholding to minimize the effects of multipath interference.
  • The maximum range of the A111-001-T&R is up to 5 meters, and the resolution is up to 1 mm. However, the actual range and resolution may vary depending on the material, surface roughness, and environmental conditions. Acconeer provides guidelines for optimizing performance in different scenarios.
  • The A111-001-T&R uses frequency hopping and adaptive thresholding to mitigate interference from other radar systems. Additionally, Acconeer recommends using shielding and proper PCB design to minimize electromagnetic interference (EMI).
  • The A111-001-T&R has a typical power consumption of 150 mW. The device operates within a temperature range of -40°C to 85°C. System designers should consider thermal management and power supply design to ensure reliable operation.
