A symmetrical layout with a central ground plane and minimal signal trace length is recommended. Allegro provides a reference layout in their application note AN296055.
The output voltage swing can be adjusted by selecting the appropriate gain resistor (Rgain) and output filter capacitor (Cout). A higher Rgain value increases the output voltage swing, while a larger Cout value reduces the output voltage swing.
The A1123ELHLT-T is rated for operation from -40°C to 150°C (TJ). However, for optimal performance and reliability, it is recommended to operate the device within a temperature range of -20°C to 125°C.
To ensure EMC, use a shielded cable for the current sense lines, keep the sense lines short and away from noise sources, and use a common mode choke or ferrite bead to filter out high-frequency noise.
The maximum allowable current for the A1123ELHLT-T is 50 A. Exceeding this current may damage the device or affect its accuracy.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A1123ELHLT-T Overview

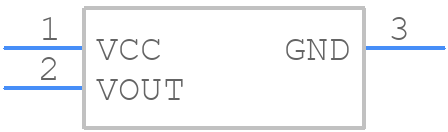

Use the download button to access the A1123ELHLT-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A1123,
or try a keyword search, such as Magnetic Field Sensors
