A1123LLHLT-T - Allegro Microsystems

Description: Chopper-Stabilized Precision Hall-Effect Switch

Download A1123LLHLT-T Model
Schematic

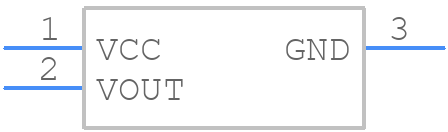

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A1123LLHLT-T - Allegro Microsystems PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - LH, 3-Pin (SOT-23W)_2022
click to zoom
3D Models
A1123LLHLT-T - Allegro Microsystems  - 3D model - SOT23 (3-Pin) - LH, 3-Pin (SOT-23W)_2022
click to zoom

A1123LLHLT-T Details

  • Manufacturer Part Number:

    A1123LLHLT-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    6

  • Additional Feature:

    AEC-Q100; SHORT CIRCUIT PROTECTION

  • Body Breadth:

    1.91 mm

  • Body Height:

    1 mm

  • Body Length or Diameter:

    2.98 mm

  • Housing:

    PLASTIC

  • Hysteresis:

    5.5 mT

  • Input Mode:

    UNIPOLAR

  • Magnetic Field Range-Max:

    35.5 mT

  • Magnetic Field Range-Min:

    15 mT

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    3

  • Operating Current-Max:

    4 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Circuit Type:

    TRANSISTOR

  • Output Current-Max:

    60 mA

  • Output Range:

    30-60mA

  • Output Type:

    CURRENT OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TO-236

  • Package Shape/Style:

    RECTANGULAR

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    24 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin (Sn)

  • Termination Type:

    SOLDER

A1123LLHLT-T Frequently Asked Questions (FAQs)

  • Allegro recommends a 4-layer PCB with a solid ground plane, and to keep the sense lines as short as possible. Additionally, it's recommended to use a Kelvin connection for the sense lines to minimize noise and errors.
  • When the input voltage is close to the minimum rating, the output voltage of the A1123LLHLT-T may not be within the specified tolerance. In such cases, it's recommended to use an external voltage regulator or a voltage buffer to ensure a stable output voltage.
  • The maximum allowable current through the sense lines of the A1123LLHLT-T is typically limited by the PCB layout and the sense resistor value. As a general guideline, Allegro recommends keeping the sense current below 10 mA to minimize errors and ensure accurate measurements.
  • Calibration of the A1123LLHLT-T typically involves adjusting the offset and gain of the device. Allegro provides a calibration procedure in the datasheet, which involves applying a known current to the sense lines and adjusting the offset and gain to achieve the desired accuracy.
  • The A1123LLHLT-T is specified to operate over a temperature range of -40°C to 150°C. Over this range, the device's accuracy may vary due to changes in the sense resistor value and other internal components. Allegro recommends using temperature compensation techniques or calibrating the device at the operating temperature to minimize errors.
