Allegro provides a recommended PCB layout in their application note AN296068, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and minimize noise.
Calibration involves adjusting the zero-current output voltage (VOUT) to match the device's specified offset voltage. Allegro provides a calibration procedure in their datasheet, which involves applying a known current and adjusting the VOUT using an external resistor or potentiometer.
The maximum allowable voltage on the VCC pin is 5.5 V, as specified in the datasheet. Exceeding this voltage may damage the device or affect its performance.
The A1330LLETR-P-T is rated for operation up to 150°C, but its accuracy and performance may degrade at higher temperatures. Allegro recommends using the device within its specified operating temperature range (–40°C to 150°C) for optimal performance.
To minimize EMI effects, Allegro recommends using proper PCB layout techniques, such as separating analog and digital traces, using ground planes, and adding EMI filters or shielding. Additionally, ensure that the device is properly decoupled and bypassed.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A1330LLETR-P-T Overview

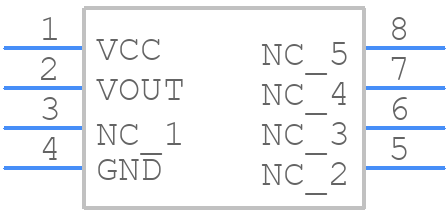

Use the download button to access the A1330LLETR-P-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A1330,
or try a keyword search, such as Rotary Position Sensors
