A good PCB layout for the A1330LLETR-T involves keeping the sense lines as short as possible, using a ground plane to reduce noise, and placing the device close to the magnetic field source. Allegro provides a recommended PCB layout in their application notes.
Calibration involves adjusting the device's sensitivity and offset to match the specific application. Allegro provides a calibration procedure in their application notes, which involves applying a known magnetic field and adjusting the device's output to match the expected value.
The A1330LLETR-T is rated for operation from -40°C to 150°C, but the device's accuracy and sensitivity may degrade at extreme temperatures. It's essential to consider the temperature range of the application and ensure the device is operated within its specified range.
To minimize EMI and RFI, use shielding, filtering, and grounding techniques. Ensure the device is placed in a shielded area, and use filters to reduce high-frequency noise. Grounding the device and surrounding components can also help reduce interference.
A decoupling capacitor (e.g., 10 μF) should be placed close to the device's power pins to filter out noise and ensure stable operation. Additionally, a voltage regulator can be used to regulate the power supply and reduce noise.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A1330LLETR-T Overview

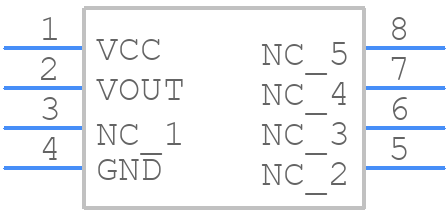

Use the download button to access the A1330LLETR-T schematic symbol, PCB footprint, and 3D model.
