A good PCB layout for the A1333LLETR-5-T involves keeping the sensitive analog circuitry away from noisy digital signals, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
To ensure accurate magnetic field measurements, calibrate the sensor in the specific application environment, use a stable power supply, and minimize external interference sources such as nearby magnets or ferromagnetic materials.
The A1333LLETR-5-T is rated for operation from -40°C to 150°C, but it's recommended to derate the sensor's performance at extreme temperatures and consider thermal management strategies to ensure reliable operation.
Yes, the A1333LLETR-5-T is designed to withstand vibrations up to 10g, but it's essential to ensure the sensor is properly mounted and secured to prevent mechanical stress and damage.
The A1333LLETR-5-T has an analog output, so you'll need to use an ADC (analog-to-digital converter) in your microcontroller to convert the sensor's output voltage to a digital signal. Consult the microcontroller's datasheet for specific ADC configuration and programming.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A1333LLETR-5-T Overview

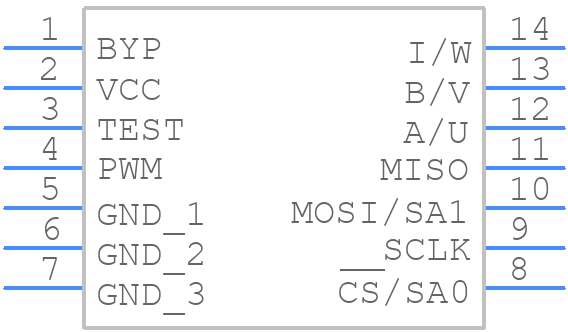

Use the download button to access the A1333LLETR-5-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A1333,
or try a keyword search, such as Rotary Position Sensors
