A good PCB layout for the A1333LLPTR-DD-T involves keeping the sensitive analog signals away from the digital signals, using a solid ground plane, and minimizing the length of the traces to reduce noise and EMI.
To ensure accurate magnetic field measurements, it's essential to calibrate the sensor, use a stable power supply, and minimize external interference. Also, ensure the sensor is properly aligned with the magnetic field and the measurement range is set correctly.
The A1333LLPTR-DD-T has an operating temperature range of -40°C to 150°C, but it's recommended to operate it within -20°C to 85°C for optimal performance and reliability.
The A1333LLPTR-DD-T can be interfaced with a microcontroller using a standard SPI or I²C interface. Ensure the microcontroller's voltage levels are compatible with the sensor's voltage range, and use a level shifter if necessary.
The typical current consumption of the A1333LLPTR-DD-T is around 10mA, but it can vary depending on the operating frequency, voltage, and mode of operation. Refer to the datasheet for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A1333LLPTR-DD-T Overview

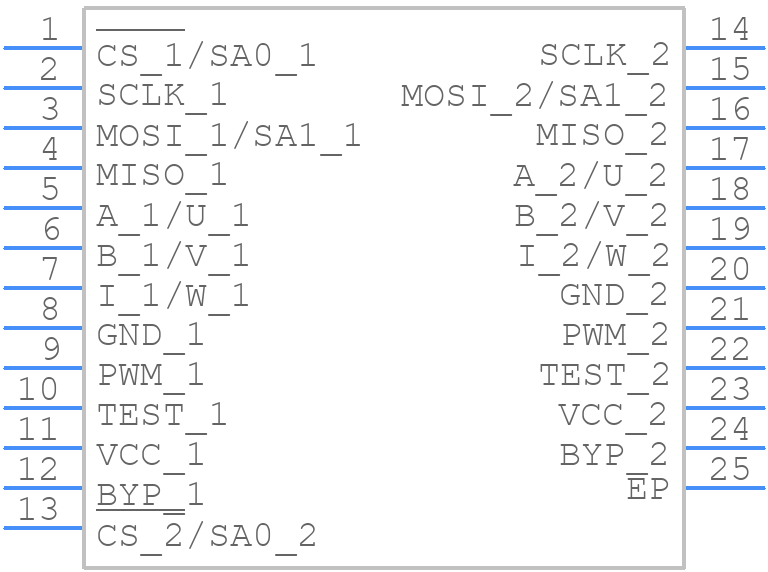

Use the download button to access the A1333LLPTR-DD-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A1333,
or try a keyword search, such as Rotary Position Sensors
