Allegro provides a recommended PCB layout in their application note AN296068, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and minimize noise.
The A1334LLETR-30-T has an output voltage swing of 0.5 V to 4.5 V, which may not be compatible with all microcontrollers. Engineers can use a voltage divider or a level shifter to adjust the output voltage to match the microcontroller's input voltage requirements.
While the datasheet specifies an operating temperature range of -40°C to 150°C, engineers should note that the device's accuracy and performance may degrade at extreme temperatures. It's essential to consider the specific application's temperature requirements and ensure the device is operated within its recommended temperature range.
Allegro provides a calibration procedure in their application note AN296070, which involves applying a known magnetic field and adjusting the device's internal registers to achieve optimal accuracy. Engineers can also use Allegro's calibration software tool to simplify the process.
To ensure proper operation, engineers should follow a recommended power-on sequence, which typically involves powering up the device's VCC pin before the VDD pin. This sequence helps prevent latch-up and ensures the device initializes correctly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A1334LLETR-30-T Overview

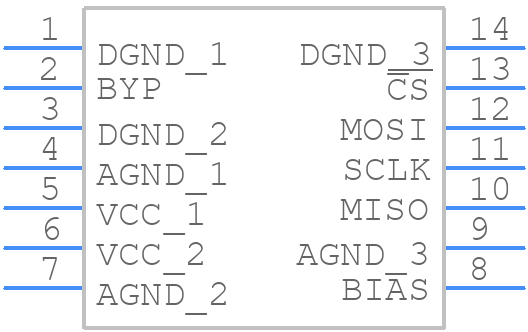

Use the download button to access the A1334LLETR-30-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A1334,
or try a keyword search, such as Magnetic Field Sensors
