A1337LLETR-DD-T - Allegro Microsystems

Description: High Resolution Programmable Angle Sensor

Download A1337LLETR-DD-T Model

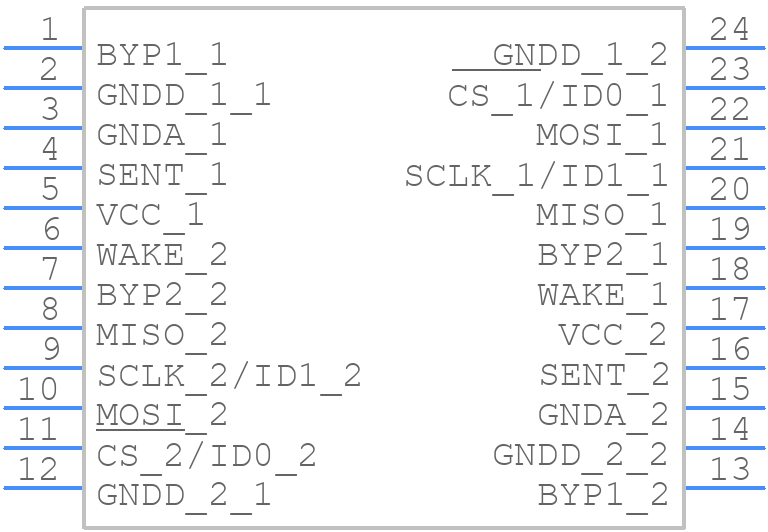

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A1337LLETR-DD-T - Allegro Microsystems PCB footprint - Other - Other - Package LE, 24-Pin TSSOP (Dual Die Version)
click to zoom
3D Models
A1337LLETR-DD-T - Allegro Microsystems  - 3D model - Other - Package LE, 24-Pin TSSOP (Dual Die Version)
click to zoom

A1337LLETR-DD-T Details

  • Manufacturer Part Number:

    A1337LLETR-DD-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    6

  • JESD-609 Code:

    e3

  • Sensors/Transducers Type:

    ROTARY POSITION SENSOR,HALL EFFECT

  • Terminal Finish:

    Tin (Sn)

A1337LLETR-DD-T Frequently Asked Questions (FAQs)

  • Allegro recommends a 4-layer PCB with a solid ground plane, and the use of vias to connect the top and bottom layers to reduce noise and improve thermal dissipation. A minimum of 2 oz copper thickness is recommended for the traces.
  • To ensure accurate current sensing, it's essential to follow proper PCB layout guidelines, use a low-impedance current path, and minimize the distance between the sense pins and the current-carrying conductor. Additionally, the sense pins should be connected to a low-noise, low-impedance analog-to-digital converter (ADC) input.
  • The maximum allowable voltage on the VCC pin is 5.5V. Exceeding this voltage may damage the device. It's recommended to use a voltage regulator or a voltage clamp to ensure the voltage remains within the specified range.
  • The A1337LLETR-DD-T is rated for operation up to 150°C. However, the device's accuracy and reliability may be affected at high temperatures. It's recommended to derate the device's performance and consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a safe operating temperature.
  • To troubleshoot issues with the A1337LLETR-DD-T, start by verifying the PCB layout and ensuring that the device is properly soldered. Check the power supply voltage, sense pin connections, and analog-to-digital converter (ADC) settings. Use an oscilloscope to monitor the device's output and look for signs of noise or oscillation. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A1337LLETR-DD-T Overview

Use the download button to access the A1337LLETR-DD-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A1337, or try a keyword search, such as Rotary Position Sensors
