Allegro provides a recommended PCB layout in their application note AN296068, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and minimize noise.
The A1338LLETR-P-T has a maximum junction temperature of 150°C. To handle thermal characteristics, ensure proper heat sinking, use thermal vias, and follow Allegro's thermal management guidelines in their application notes.
Allegro recommends a 10 μF to 22 μF ceramic capacitor with a voltage rating of 10 V or higher for the VCC pin to filter out noise and ensure stable operation.
To troubleshoot output signal issues, check the device's output pin for proper termination, ensure the output frequency is within the specified range, and verify that the device is properly powered and configured. Consult Allegro's application notes and technical support resources for further assistance.
Yes, the A1338LLETR-P-T is AEC-Q100 qualified, making it suitable for automotive applications. However, ensure that the device is used within its specified operating conditions and follows the recommended application guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A1338LLETR-P-T Overview

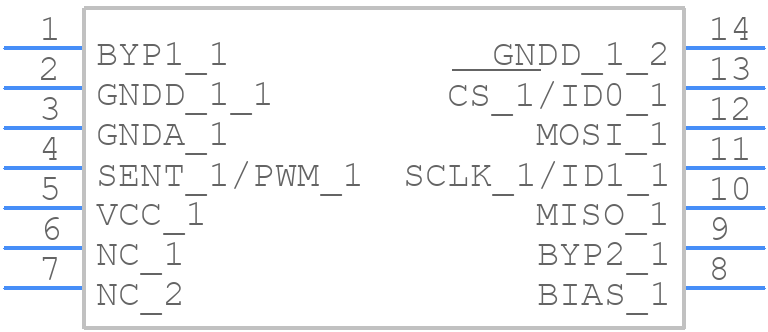

Use the download button to access the A1338LLETR-P-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A1338,
or try a keyword search, such as Rotary Position Sensors
