A1339LLETR-T - Allegro Microsystems

Description: ASIL Angle Sensor W/ Turns Count

Download A1339LLETR-T Model

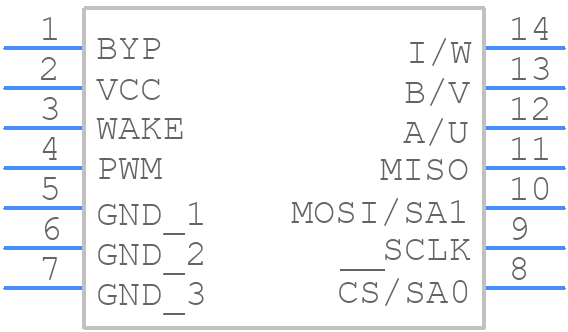

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A1339LLETR-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LE, 14-Pin TSSOP
click to zoom
3D Models
A1339LLETR-T - Allegro Microsystems  - 3D model - Small Outline Packages - LE, 14-Pin TSSOP
click to zoom

A1339LLETR-T Details

  • Manufacturer Part Number:

    A1339LLETR-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-14

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    7

  • Additional Feature:

    ISO 26262

  • Body Breadth:

    4.4 mm

  • Body Height:

    1.1 mm

  • Body Length or Diameter:

    5 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Measurement Range-Max (deg):

    360 deg

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Current-Max:

    19 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    SPI INTERFACE

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Response Time:

    10 µs

  • Sensors/Transducers Type:

    ROTARY POSITION SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    16.5 V

  • Supply Voltage-Min:

    4 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Termination Type:

    SOLDER

A1339LLETR-T Frequently Asked Questions (FAQs)

  • A good PCB layout for the A1339LLETR-T involves keeping the sensitive analog circuitry away from noisy digital signals, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise coupling.
  • To ensure accurate magnetic field measurements, it's essential to properly calibrate the device, use a stable power supply, minimize external interference, and follow the recommended PCB layout and shielding guidelines.
  • The A1339LLETR-T has an operating temperature range of -40°C to 150°C, but it's essential to note that the device's accuracy and performance may degrade at extreme temperatures.
  • While the A1339LLETR-T is designed to be robust, it's still important to ensure proper mounting and mechanical stability to minimize the effects of vibration on the device's performance and accuracy.
  • The A1339LLETR-T provides an analog output that can be easily interfaced with a microcontroller or other digital systems using an ADC (analog-to-digital converter) or other analog-to-digital interface.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A1339LLETR-T Overview

Use the download button to access the A1339LLETR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A1339, or try a keyword search, such as Rotary Position Sensors
