Allegro recommends a 4-layer PCB with a solid ground plane, and a separate layer for the power supply. Keep the sense lines short and away from noise sources. Use a ferrite bead or a 10-ohm resistor in series with the power supply to reduce noise.
The A1339LLPTR-DD-T has a built-in voltage regulator, but it's recommended to add an external capacitor (e.g., 10uF) between VCC and GND to filter out ripple. Additionally, use a low-ESR capacitor (e.g., ceramic or film) to minimize voltage droop.
The A1339LLPTR-DD-T is rated for operation from -40°C to 150°C (TJ), but it's recommended to derate the device for reliable operation. Consult the datasheet for thermal resistance and power dissipation guidelines.
Use a Kelvin connection (separate sense lines) to the current sense resistor (RSENSE) to minimize voltage drops. Choose a low-TCR (temperature coefficient of resistance) sense resistor and ensure it's properly soldered to the PCB. Avoid routing sense lines near noise sources or high-current paths.
The A1339LLPTR-DD-T can be programmed using the Allegro Programming Tool (APT) software and a dedicated programming board. Follow the programming guide and ensure the device is properly connected to the programming board.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A1339LLPTR-DD-T Overview

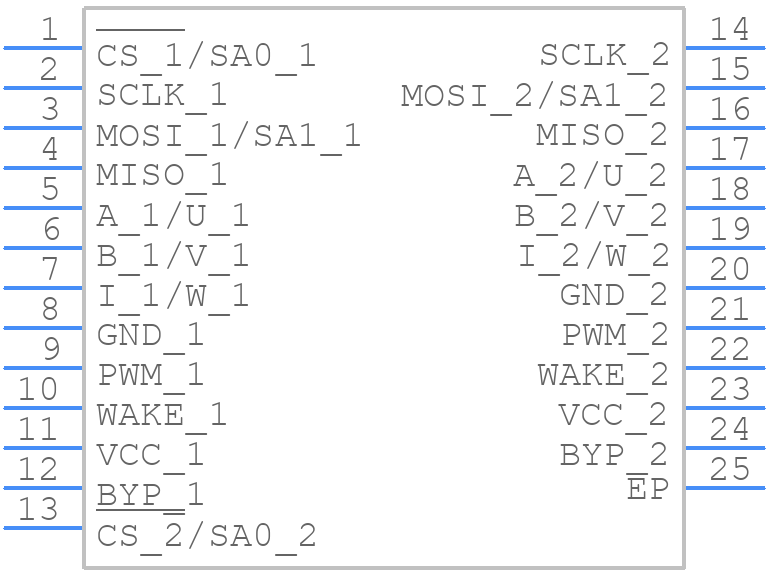

Use the download button to access the A1339LLPTR-DD-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A1339,
or try a keyword search, such as Rotary Position Sensors
