A1343LLETR-T - Allegro Microsystems

Description: Programmable Linear W/EEPROM, SENT & PWM Protocols & Advanced Output Linearization

Download A1343LLETR-T Model

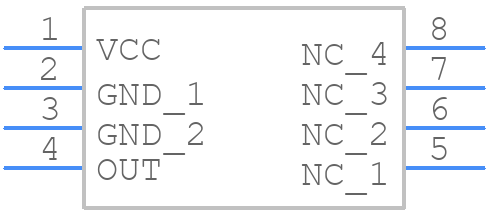

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A1343LLETR-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LE, 8-Pin TSSOP (Dual Die Version)-1
click to zoom
3D Models
A1343LLETR-T - Allegro Microsystems  - 3D model - Small Outline Packages - LE, 8-Pin TSSOP (Dual Die Version)-1
click to zoom

A1343LLETR-T Details

  • Manufacturer Part Number:

    A1343LLETR-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-8

  • Date Of Intro:

    2017-07-27

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    7

  • Body Breadth:

    3 mm

  • Body Height:

    1 mm

  • Body Length or Diameter:

    4.4 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Circuit Type:

    OPEN-DRAIN

  • Output Polarity:

    INVERTING

  • Output Type:

    DIGITAL OUTPUT

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Termination Type:

    SOLDER

A1343LLETR-T Frequently Asked Questions (FAQs)

  • A good PCB layout for the A1343LLETR-T involves keeping the sensitive analog circuitry away from noisy digital signals, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise coupling.
  • To ensure accurate magnetic field measurements, it's essential to properly calibrate the device, use a stable power supply, minimize external interference, and follow the recommended PCB layout and shielding guidelines.
  • The A1343LLETR-T has an operating temperature range of -40°C to 150°C, but it's essential to note that the device's accuracy and performance may degrade at extreme temperatures.
  • While the A1343LLETR-T is designed to be robust, it's still important to ensure proper mounting and mechanical stability to minimize the effects of vibration on the device's performance and accuracy.
  • The A1343LLETR-T provides an analog output that can be easily interfaced with a microcontroller or other digital systems using an ADC (analog-to-digital converter) or other analog-to-digital interface.
