Allegro provides a recommended PCB layout in their application note AN296068, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and minimize noise.
When the input voltage is close to the minimum operating voltage, the output voltage of the A1359LLETR-T may not be regulated. In such cases, it's recommended to use an external voltage regulator or a voltage supervisor to ensure a stable output voltage.
The maximum allowable current through the output pins of the A1359LLETR-T is dependent on the package type and thermal management. According to Allegro's documentation, the maximum current is 20 mA per pin for the TSSOP package, but it's recommended to consult the datasheet and application notes for specific guidance.
The A1359LLETR-T provides several fault detection flags, such as the FAULT pin, which can be used to implement fault detection and diagnosis. Allegro provides application notes and code examples to help engineers implement fault detection and diagnosis in their systems.
The A1359LLETR-T can be programmed using Allegro's GUI-based software tool, the A1359 Eval Kit, or through a custom programming interface using the SPI or I²C protocol. Allegro provides documentation and code examples to help engineers program the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A1359LLETR-T Overview

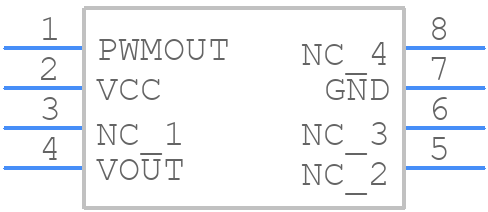

Use the download button to access the A1359LLETR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A1359,
or try a keyword search, such as Other Signal Circuits
