A good PCB layout for the A1363LLUTR-5-T should include a solid ground plane, separate analog and digital grounds, and a decoupling capacitor (e.g., 0.1 μF) between VCC and GND. Keep the sensor away from high-current carrying traces and ensure a low-impedance path for the output signal.
Calibration involves applying a known magnetic field and adjusting the sensor's offset and sensitivity. Allegro provides a calibration procedure in the datasheet, which involves applying a ±10 Oe field and adjusting the output to match the expected values. You can also use a calibration tool or software provided by Allegro or third-party vendors.
The A1363LLUTR-5-T is rated for operation from -40°C to 150°C. However, the sensor's accuracy and linearity may degrade at extreme temperatures. Ensure proper thermal management and consider temperature compensation if operating near the extremes.
The A1363LLUTR-5-T is designed to withstand moderate vibrations. However, extreme vibrations may affect the sensor's accuracy. If your application involves high vibrations, consider using a vibration-dampening mounting system or a sensor with enhanced vibration resistance.
To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing signal loop areas, and using shielding or filtering if necessary. Also, ensure the sensor is properly decoupled from the power supply and that the output signal is properly terminated.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A1363LLUTR-5-T Overview

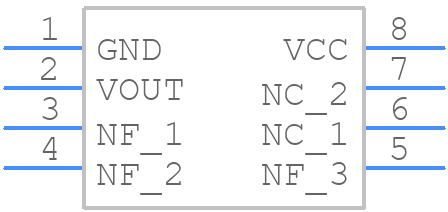

Use the download button to access the A1363LLUTR-5-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A1363,
or try a keyword search, such as Other Sensors/Transducers
