Allegro recommends a 4-layer PCB with a solid ground plane, and to keep the sense lines as short as possible. Additionally, it's recommended to use a separate power plane for the IC and to decouple the power supply with a 10uF capacitor.
To ensure accurate current sensing, it's essential to follow proper PCB layout guidelines, use a low-impedance sense resistor, and minimize the distance between the sense resistor and the IC. Additionally, the sense lines should be twisted and shielded to reduce noise and electromagnetic interference.
The maximum allowable voltage on the VCC pin is 5.5V. Exceeding this voltage may damage the IC. It's recommended to use a voltage regulator or a voltage clamp to ensure the voltage remains within the specified range.
The A1569ELJTR-T is rated for operation up to 150°C. However, it's essential to ensure proper thermal management, such as using a heat sink or a thermal pad, to prevent overheating and ensure reliable operation.
To troubleshoot issues, start by verifying the PCB layout and ensuring that the sense lines are properly connected. Check the power supply voltage and ensure it's within the specified range. Use an oscilloscope to verify the output signal and check for noise or interference. If issues persist, consult the datasheet and application notes or contact Allegro's technical support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A1569ELJTR-T Overview

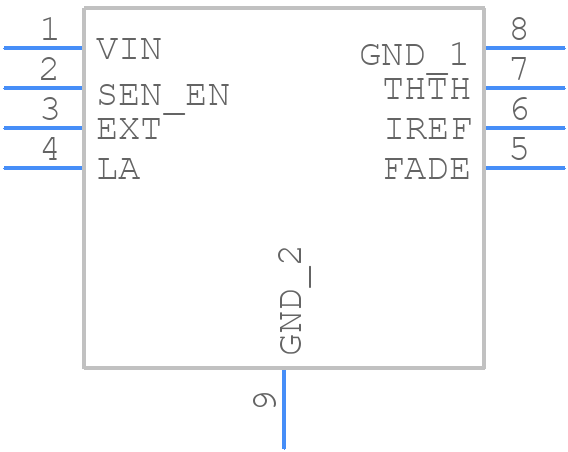

Use the download button to access the A1569ELJTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A1569,
or try a keyword search, such as Display Drivers
