The recommended torque is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in) for the M2 screws.
Yes, the connector is designed to withstand vibrations up to 10 G (98 m/s²) in the frequency range of 10 Hz to 2,000 Hz.
The connector is rated for operating temperatures from -40°C to 105°C (-40°F to 221°F) and can withstand humidity up to 90% RH. However, it's essential to follow the recommended storage and operating conditions to ensure reliability.
The connector is rated for a minimum of 500 mating cycles.
Yes, the connector is designed for automated assembly and inspection, with features such as a pick-and-place area and a visual inspection hole.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A1A-12PA-2.54DS(71) Overview

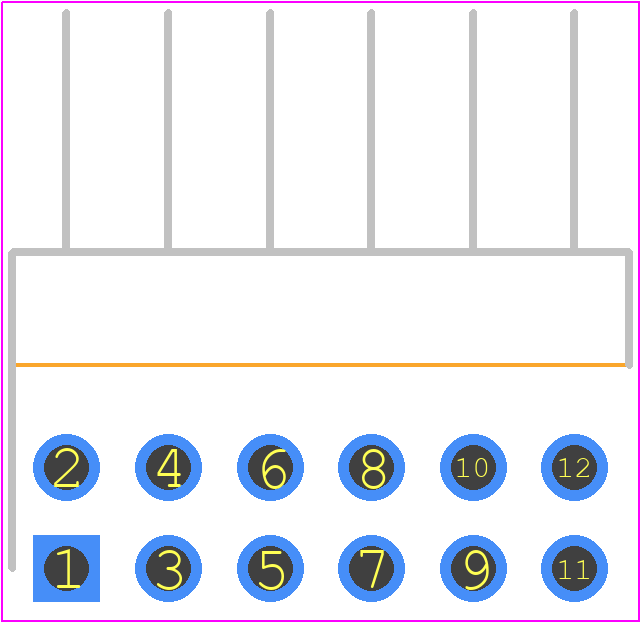

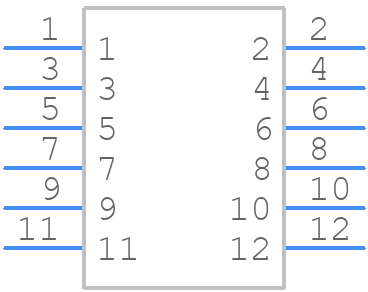

Use the download button to access the A1A-12PA-2.54DS(71) schematic symbol, PCB footprint, and 3D model.
