A1P25S12M3-F - STMicroelectronics

Description: Trans IGBT Module N-CH 1200V 25A 197000mW 22-Pin ACEPACK-1 Tray

Download A1P25S12M3-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

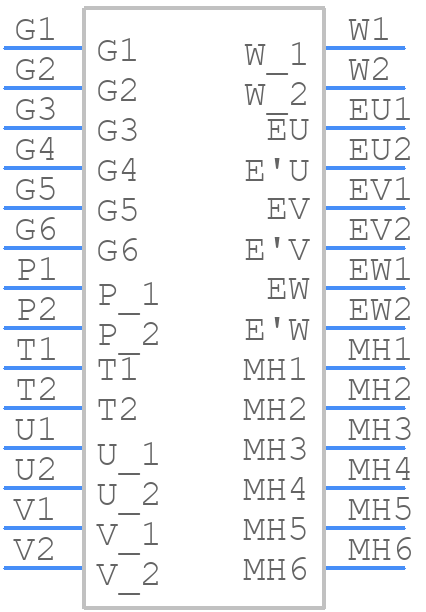

A1P25S12M3-F - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

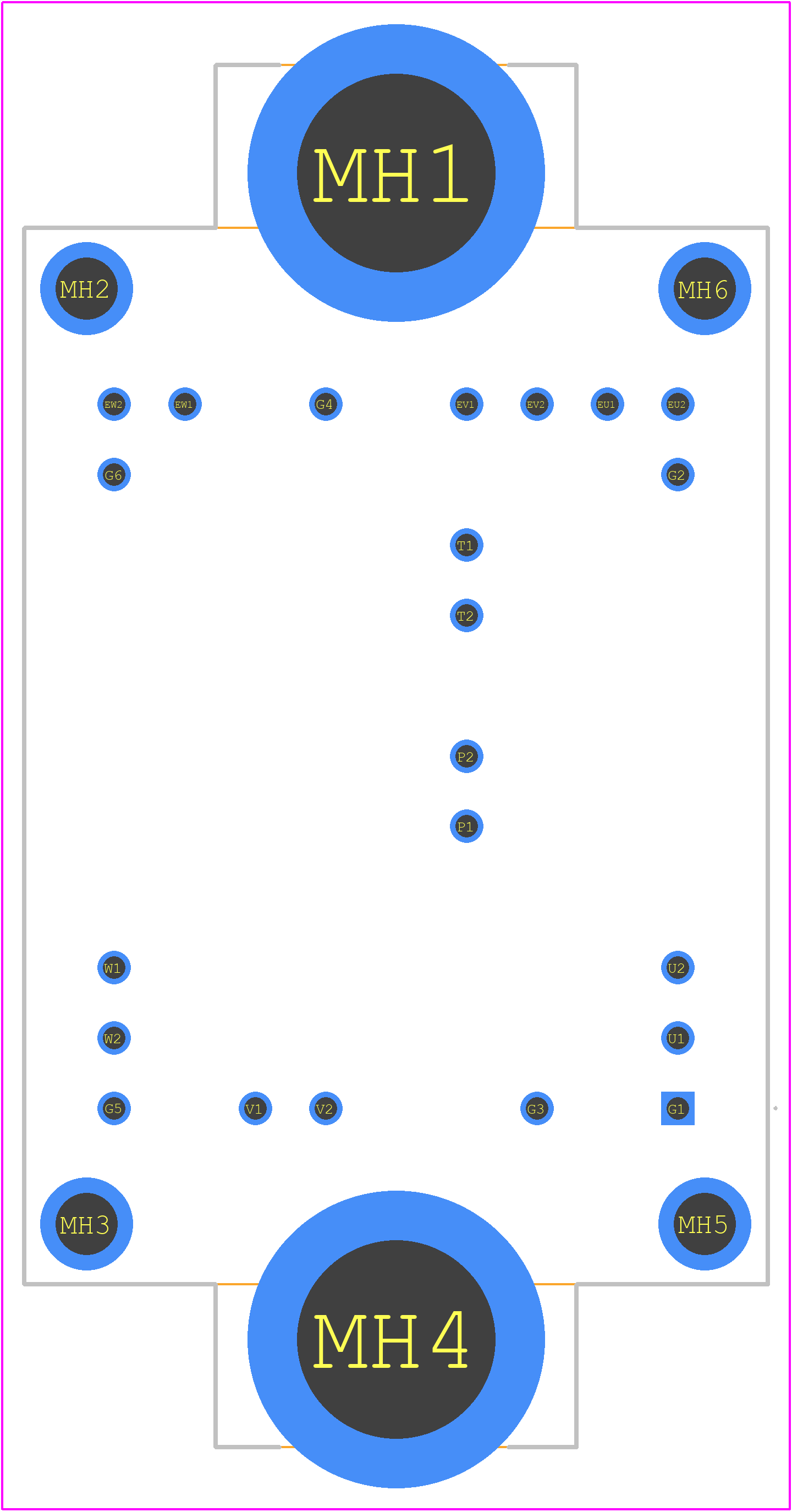

A1P25S12M3-F - STMicroelectronics PCB footprint - Other - Other - A1P25S12M3-F-6
click to zoom
3D Models
A1P25S12M3-F - STMicroelectronics - 3D model - Other - A1P25S12M3-F-6
click to zoom

A1P25S12M3-F Details

  • Manufacturer Part Number:

    A1P25S12M3-F

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    25 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    COMPLEX

  • Gate-Emitter Thr Voltage-Max:

    7 V

  • Gate-Emitter Voltage-Max:

    20 V

  • JESD-30 Code:

    R-XUFM-X22

  • Number of Elements:

    6

  • Number of Terminals:

    22

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    197 W

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    POWER CONTROL

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    326 ns

  • Turn-on Time-Nom (ton):

    139 ns

  • VCEsat-Max:

    2.45 V
