A1P25S12M3 - STMicroelectronics

Description: ACEPACK™ 1 sixpack topology, 1200 V, 25 A, trench gate field‑stop M series IGBT with soft diode and NTC

Download A1P25S12M3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

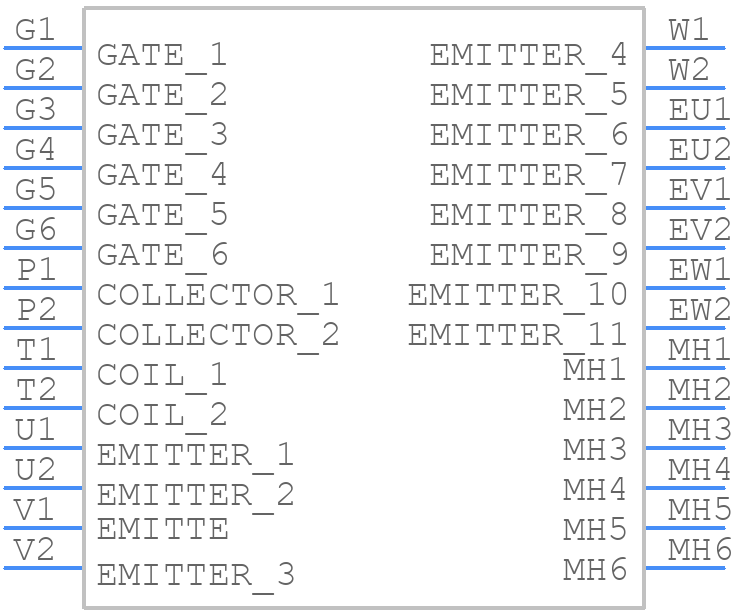

A1P25S12M3 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

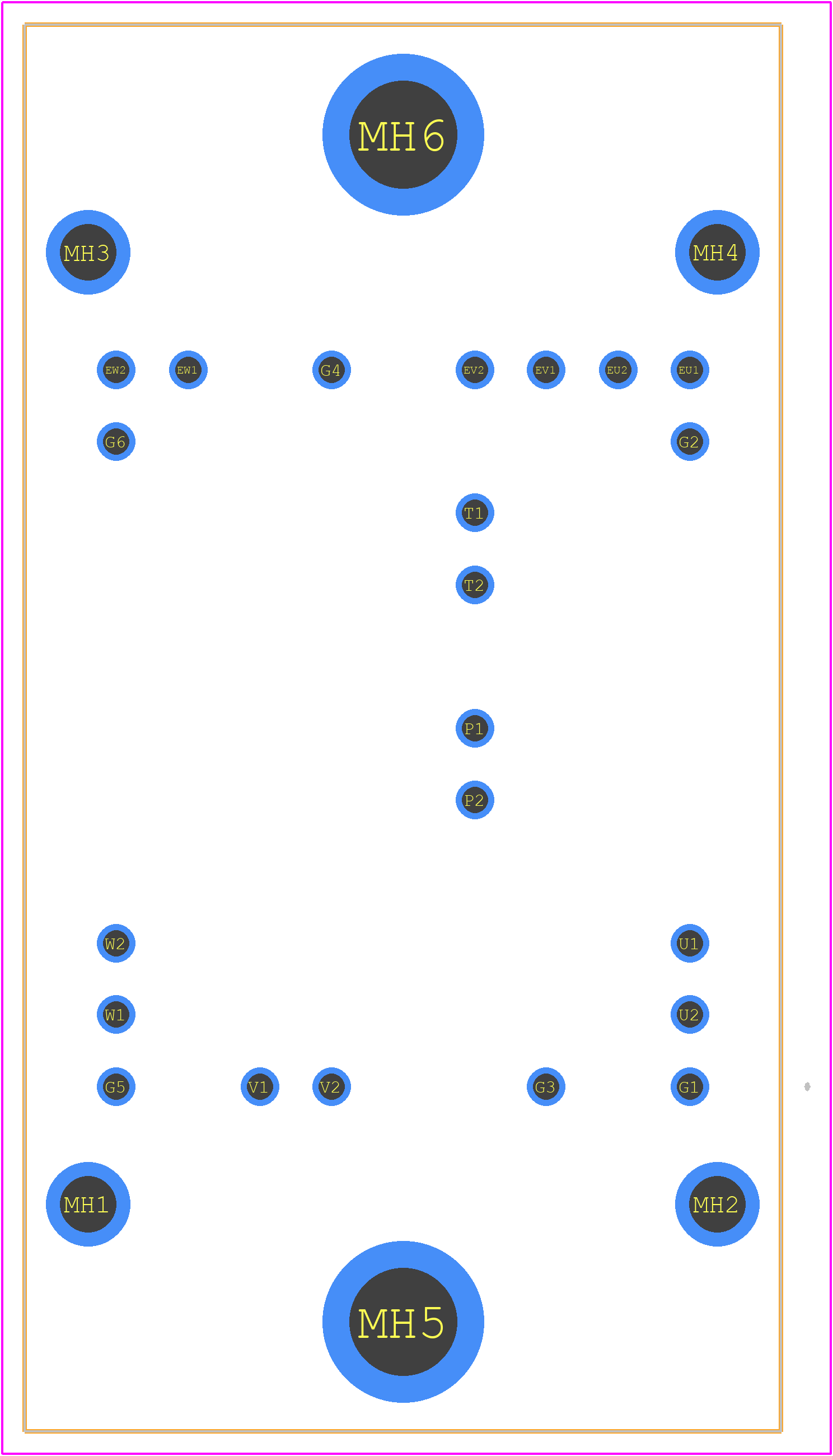

A1P25S12M3 - STMicroelectronics PCB footprint - Other - Other - A1P25S12M3-1
click to zoom
3D Models
A1P25S12M3 - STMicroelectronics - 3D model - Other - A1P25S12M3-1
click to zoom

A1P25S12M3 Details

  • Manufacturer Part Number:

    A1P25S12M3

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Date Of Intro:

    2018-02-16

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    25 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    COMPLEX

  • Gate-Emitter Thr Voltage-Max:

    7 V

  • Gate-Emitter Voltage-Max:

    20 V

  • JESD-30 Code:

    R-XUFM-X22

  • Number of Elements:

    6

  • Number of Terminals:

    22

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    197 W

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    POWER CONTROL

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    326 ns

  • Turn-on Time-Nom (ton):

    139 ns

  • VCEsat-Max:

    2.45 V

A1P25S12M3 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the A1P25S12M3 is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range.
  • To ensure proper operation, it's crucial to follow the recommended power-up and power-down sequences outlined in the datasheet. This includes ramping up the voltage supply slowly, ensuring that the voltage reaches the recommended operating range before enabling the device, and following a similar sequence during power-down.
  • Failing to use the recommended bypass capacitors can lead to instability, noise, and reduced performance. The bypass capacitors help to filter out noise and ensure that the device operates within the specified voltage range. Omitting them can result in reduced reliability and potential device failure.
  • While the A1P25S12M3 is a high-performance device, it's essential to evaluate its suitability for high-reliability or safety-critical applications. Engineers should carefully review the device's specifications, reliability data, and failure modes to ensure it meets the required standards and regulations for their specific application.
  • When troubleshooting issues with the A1P25S12M3, engineers should follow a systematic approach, starting with a review of the device's datasheet, application notes, and design guidelines. They should also verify the device's operating conditions, power supply, and signal integrity, and use debugging tools and techniques to isolate the issue.
