A2-20PA-2.54DSA(71) - Hirose

Description: Headers & Wire Housings 20P M PIN HEADER SR STRAIGHT TYPE GOLD

Download A2-20PA-2.54DSA(71) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
A2-20PA-2.54DSA(71) - Hirose - PCB symbol
click to zoom
PCB Footprints

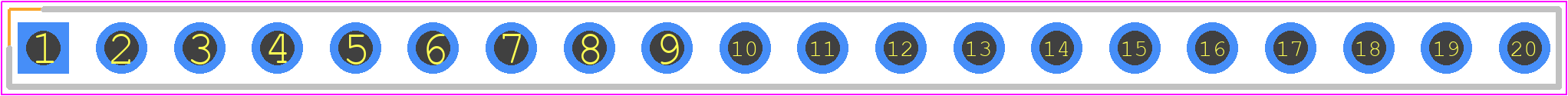

A2-20PA-2.54DSA(71) - Hirose PCB footprint - Header, Vertical - Header, Vertical - DIP
click to zoom
3D Models
A2-20PA-2.54DSA(71) - Hirose - 3D model - Header, Vertical - DIP
click to zoom

A2-20PA-2.54DSA(71) Details

  • Manufacturer Part Number:

    A2-20PA-2.54DSA(71)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Indonesia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    9.1

  • Connector Type:

    BOARD CONNECTOR

A2-20PA-2.54DSA(71) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 N·m to 1.5 N·m.
  • Yes, the A2-20PA-2.54DSA(71) is designed to withstand vibrations and can be used in high-vibration environments.
  • The operating temperature range for the A2-20PA-2.54DSA(71) is -40°C to 105°C.
  • Yes, the A2-20PA-2.54DSA(71) is designed to be used in harsh environments and can withstand exposure to dust, moisture, and other environmental factors.
  • Yes, the A2-20PA-2.54DSA(71) can be used with a cable assembly, but it's recommended to consult with Hirose Electric Co Ltd or a qualified engineer to ensure proper design and assembly.
