A20642MNCQ - LITTELFUSE

Description: Rotary Switch 6 Position DP6T 2.5A (AC), 350mA (DC) 125 VAC Panel Mount, Through Hole

Download A20642MNCQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

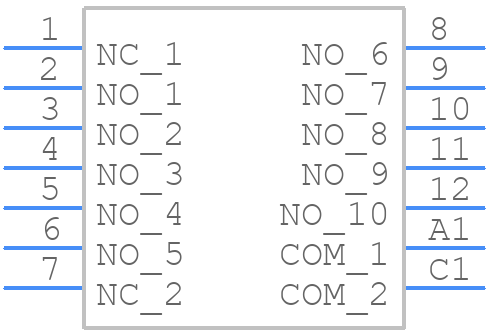

Symbol
A20642MNCQ - LITTELFUSE - PCB symbol
click to zoom

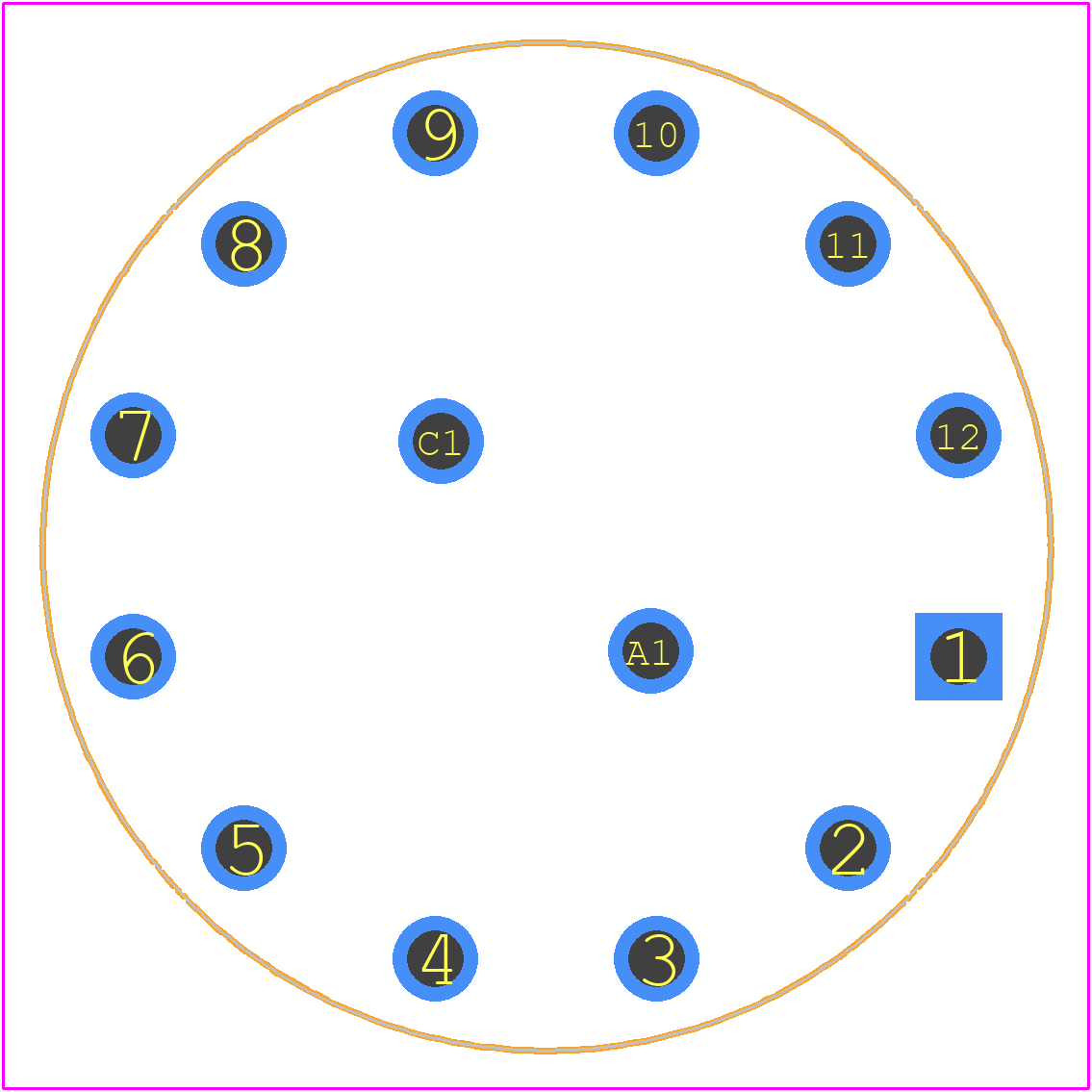

PCB Footprints
A20642MNCQ - LITTELFUSE PCB footprint - Other - Other - A20615RNCQ_1
click to zoom
3D Models
A20642MNCQ - LITTELFUSE - 3D model - Other - A20615RNCQ_1
click to zoom

A20642MNCQ Details

  • Manufacturer Part Number:

    A20642MNCQ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Vietnam

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    6

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A20642MNCQ Overview

Use the download button to access the A20642MNCQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A2064, or try a keyword search, such as Rotary Switches
