A221K12KAG - ELECTROSWITCH

Description: Switch Toggle ON OFF ON DPDT Locking Lever PC Pins 6A 250VAC 28VDC 0.5VA PC Mount with Bracket and Threads

Download A221K12KAG Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this A221K12KAG model

Email notifications will be applied after download.

Send part feedback

Symbol

A221K12KAG - ELECTROSWITCH - PCB symbol

PCB Footprints

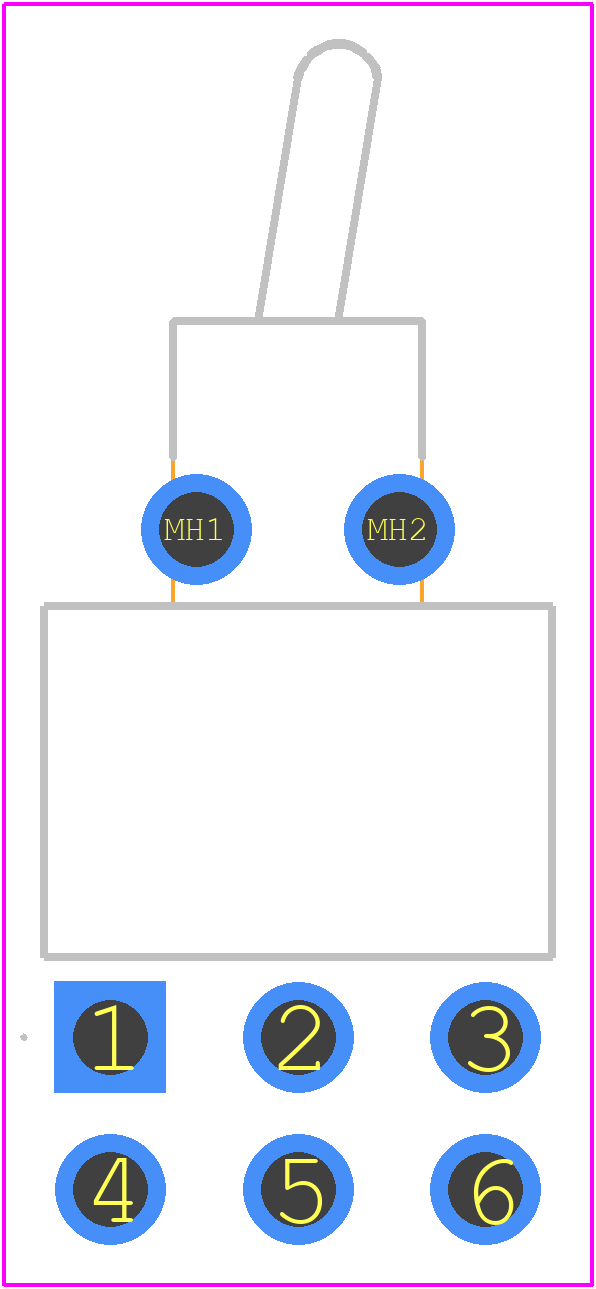

A221K12KAG - ELECTROSWITCH PCB footprint - Other - Other - A221K12KAG-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for A221K12KAG
Part Number A221K12KAG
Manufacturer ELECTROSWITCH
Pin Count 8
Part Category Switch
Package Category Other
Footprint Name Other - A221K12KAG-2
Released Date Aug 24, 2023
Last Modified Date Aug 24, 2023 9:24 AM UTC
Pinout / Pin List Click Here (Member Only)

A221K12KAG Details

Manufacturer Part Number:
A221K12KAG
Manufacturer:
Electroswitch Electronic Products

Trust Checks

Community Provided

System Verified

Community Approved

A221K12KAG Overview

Use the download button to access the A221K12KAG schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like A221K, or try a keyword search, such as Toggle Switches
