A28100-009 footprint, schematic symbol and 3D model by Omnetics

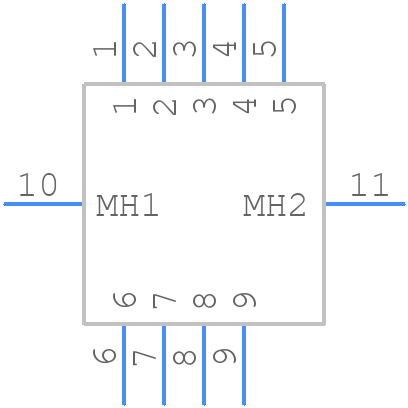

Symbol

click to zoom

PCB Footprints

A28100-009 - Omnetics PCB footprint - Other - Other - A28100-009-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for A28100-009
Part Number A28100-009
Manufacturer Omnetics
Pin Count 11
Part Category Connector
Package Category Other
Footprint Name Other - A28100-009-2
Released Date Jan 11, 2025
Last Modified Date Sep 2, 2025 6:01 AM UTC
Pinout / Pin List Click Here (Member Only)

A28100-009 Details

Manufacturer Part Number:
A28100-009
Part Life Cycle Code:
Contact Manufacturer
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Omnetics Connector Corporation
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD
Contact Finish Termination:
TIN
Contact Gender:
MALE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
0.635 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
9

A28100-009 Frequently Asked Questions (FAQs)

The recommended torque for the screw locks on the A28100-009 connector is 0.5-1.5 in-lbs (0.056-0.169 Nm).
Yes, the A28100-009 connector is designed to withstand high-vibration environments and is suitable for use in applications such as aerospace, defense, and industrial equipment.
The operating temperature range of the A28100-009 connector is -55°C to 125°C (-67°F to 257°F).
Yes, the A28100-009 connector meets NASA's outgassing requirements as specified in ASTM E595.
Yes, the A28100-009 connector is designed to operate in harsh environments and is resistant to humidity, salt spray, and exposure to chemicals.

Trust Checks

Community Provided

System Verified

Community Approved

A28100-009 Overview

Use the download button to access the A28100-009 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like A2810, or try a keyword search, such as Headers and Edge Type Connectors
