A2C25S12M3-F - STMicroelectronics

Description: ACEPACK™ 2 converter inverter brake, 1200 V, 25 A, trench gate field‑stop M series IGBT with soft diode and NTC

Download A2C25S12M3-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

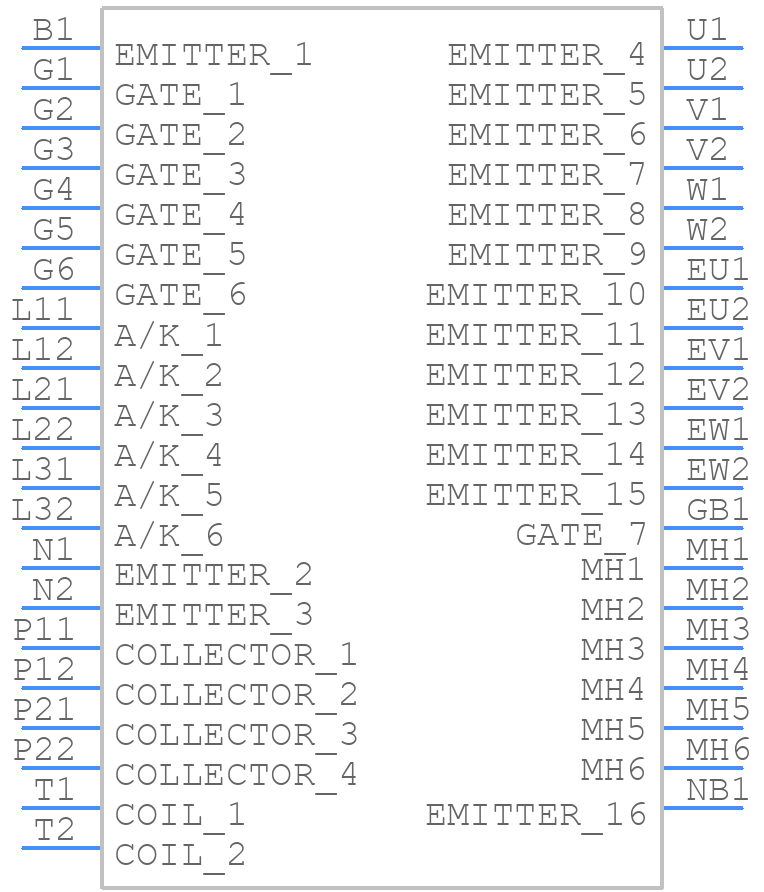

A2C25S12M3-F - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

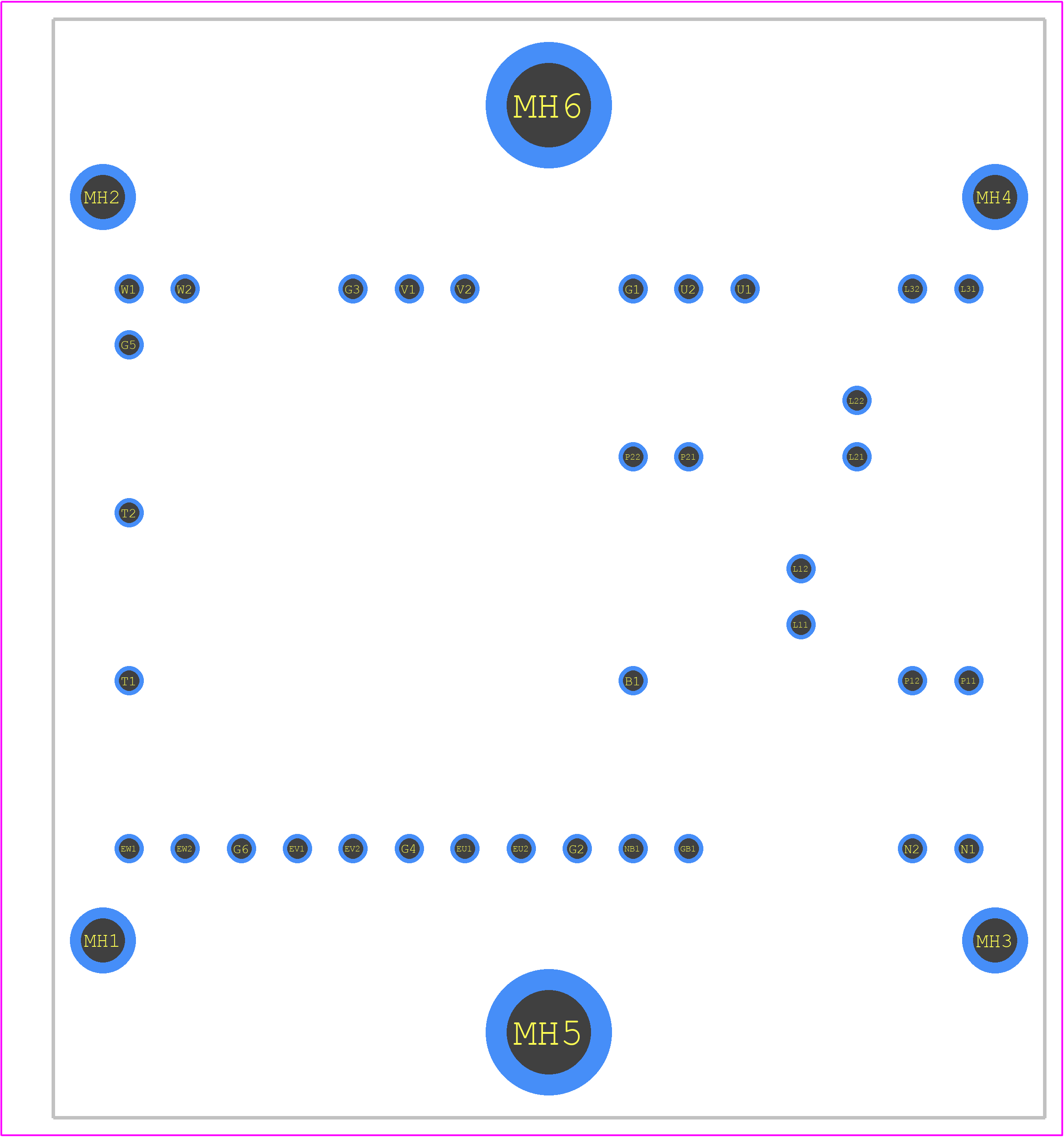

A2C25S12M3-F - STMicroelectronics PCB footprint - Other - Other - A2C25S12M3-F-2
click to zoom
3D Models
A2C25S12M3-F - STMicroelectronics - 3D model - Other - A2C25S12M3-F-2
click to zoom

A2C25S12M3-F Details

  • Manufacturer Part Number:

    A2C25S12M3-F

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    25 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    COMPLEX

  • Gate-Emitter Thr Voltage-Max:

    7 V

  • Gate-Emitter Voltage-Max:

    20 V

  • JESD-30 Code:

    R-XUFM-X35

  • Number of Elements:

    7

  • Number of Terminals:

    35

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    197 W

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Transistor Application:

    POWER CONTROL

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    338 ns

  • Turn-on Time-Nom (ton):

    125.2 ns

  • VCEsat-Max:

    2.45 V

A2C25S12M3-F Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the A2C25S12M3-F is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device can tolerate a wider temperature range during storage, which is -55°C to 150°C.
  • To prevent damage, it's crucial to handle the A2C25S12M3-F with care. Avoid touching the pins or exposing the device to moisture, as it can lead to electrical discharge or corrosion. Store the device in a dry, cool place, away from direct sunlight and radiation. Use anti-static packaging and follow proper ESD handling procedures.
  • The maximum allowed voltage on the input pins of the A2C25S12M3-F is 5.5V. Exceeding this voltage can cause permanent damage to the device. Ensure that the input voltage is within the recommended range to maintain the device's reliability and performance.
  • To troubleshoot issues with the A2C25S12M3-F, start by reviewing the datasheet and application notes to ensure correct usage and configuration. Check the power supply, clock signals, and input/output connections for any errors or inconsistencies. Use debugging tools, such as logic analyzers or oscilloscopes, to monitor the device's behavior and identify potential issues. If the problem persists, consult with STMicroelectronics' technical support or a qualified engineer for further assistance.
  • Yes, there are specific layout considerations and PCB design guidelines for the A2C25S12M3-F. Ensure that the PCB layout follows the recommended pinout and signal routing guidelines to minimize noise, crosstalk, and electromagnetic interference (EMI). Use a solid ground plane, decouple the power supply, and add bypass capacitors as necessary. Consult the datasheet and application notes for more detailed guidelines and recommendations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A2C25S12M3-F Overview

Use the download button to access the A2C25S12M3-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A2C25, or try a keyword search, such as IGBTs
