A2F200M3F-FG256 - Microchip

Description: FPGA SmartFusion Family 200K Gates 100MHz 130nm Technology 1.5V 256-Pin FBGA

Download A2F200M3F-FG256 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

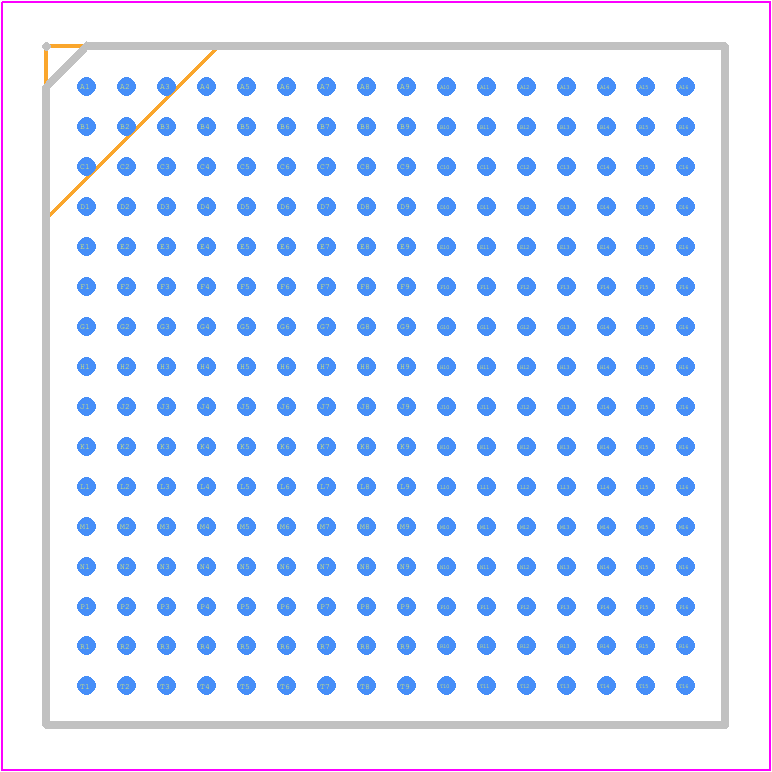

A2F200M3F-FG256 - Microchip PCB footprint - BGA - BGA - FG256
click to zoom
3D Models
A2F200M3F-FG256 - Microchip  - 3D model - BGA - FG256
click to zoom

A2F200M3F-FG256 Details

  • Manufacturer Part Number:

    A2F200M3F-FG256

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFBGA, BGA256,16X16,40

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8542.31.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    6.3

  • JESD-30 Code:

    S-PBGA-B256

  • Length:

    17 mm

  • Moisture Sensitivity Level:

    3

  • Number of Equivalent Gates:

    200000

  • Number of Inputs:

    117

  • Number of Logic Cells:

    4608

  • Number of Outputs:

    117

  • Number of Terminals:

    256

  • Operating Temperature-Max:

    85 °C

  • Organization:

    200000 GATES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA256,16X16,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Programmable Logic Type:

    FPGA SOC

  • Seated Height-Max:

    1.7 mm

  • Supply Voltage-Max:

    1.575 V

  • Supply Voltage-Min:

    1.425 V

  • Supply Voltage-Nom:

    1.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    17 mm

A2F200M3F-FG256 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the A2F200M3F-FG256 is -40°C to 100°C, with a junction temperature of up to 125°C.
  • The clock source for the A2F200M3F-FG256 can be configured using the Clock Control Register (CCR). You can select between internal or external clock sources, and configure the clock frequency and mode.
  • The maximum frequency for the A2F200M3F-FG256 is 200 MHz, but it can be overclocked up to 250 MHz with reduced voltage and temperature ranges.
  • Secure boot on the A2F200M3F-FG256 can be implemented using the built-in Secure Boot ROM and the Microchip TrustPlatform. You need to generate a secure boot image, sign it with a private key, and store it in the device's flash memory.
  • The power consumption of the A2F200M3F-FG256 varies depending on the operating frequency, voltage, and mode. Typical power consumption is around 250 mW at 200 MHz and 1.2 V, but it can be as low as 50 mW in sleep mode.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A2F200M3F-FG256 Overview

Use the download button to access the A2F200M3F-FG256 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A2F20, or try a keyword search, such as Field Programmable Gate Arrays
