A good thermal design should include a solid copper plane on the PCB, connected to the GND pin, to help dissipate heat. Additionally, keeping the component side of the PCB clear of other components and traces can improve airflow and heat dissipation.
To ensure accurate current sensing, it's essential to follow proper PCB layout guidelines, such as keeping the sense traces short and away from noise sources, and using a low-impedance path for the sense lines. Additionally, calibrating the device during manufacturing can help improve accuracy.
A simple RC filter with a 1 kΩ resistor and a 10 nF capacitor is a good starting point for most applications. However, the optimal filter configuration may vary depending on the specific application and noise environment.
The A3910EEETR-T has a built-in overcurrent detection feature. When an overcurrent condition is detected, the device will latch off and require a power cycle to reset. It's essential to design a robust overcurrent protection scheme, including a suitable current sense resistor and a latch-off timer, to prevent damage to the device and surrounding components.
The A3910EEETR-T is rated for operation from -40°C to 150°C (TJ). However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal design and heat dissipation to maintain optimal performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A3910EEETR-T Overview

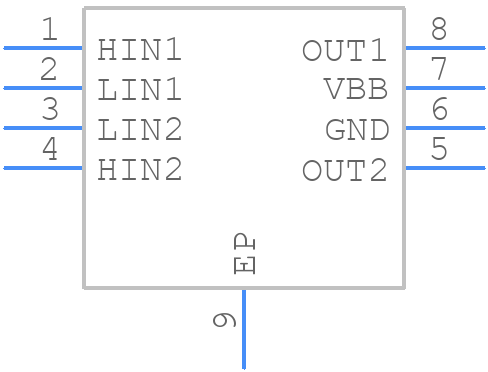

Use the download button to access the A3910EEETR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A3910,
or try a keyword search, such as Motion Control Electronics
