A good thermal design should include a solid copper plane on the PCB, connected to the GND pin, to help dissipate heat. Additionally, keeping the component side of the PCB clear of other components and traces can improve airflow and heat dissipation.
To ensure reliable operation in high-vibration environments, it is recommended to use a robust PCB design, secure the device with a sturdy mechanical fastening system, and consider using a conformal coating to protect the device from moisture and contaminants.
A 10uF to 22uF X7R or X5R ceramic capacitor is recommended for the input capacitor, placed as close to the VIN pin as possible, to filter out noise and ripple.
Check the input voltage, ensure the enable pin is properly biased, verify the output voltage is within the specified range, and check for any short circuits or overload conditions. Also, review the PCB layout and component placement to ensure they meet the recommended guidelines.
The maximum allowed voltage on the VIN pin is 40V, but it is recommended to operate within the specified input voltage range of 5.5V to 36V for optimal performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A3918SESTR-T Overview

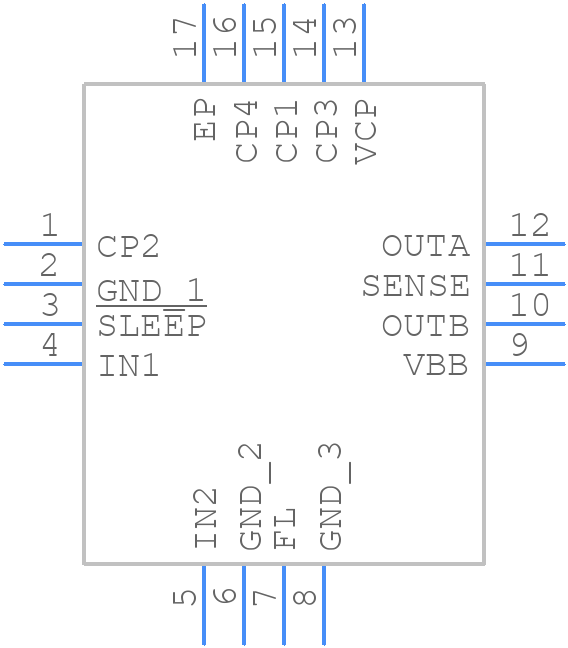

Use the download button to access the A3918SESTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A3918,
or try a keyword search, such as Motion Control Electronics
