A good PCB layout for the A3938SLD involves keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the device's pins. Allegro provides a recommended PCB layout in their application note AN296065.
Decoupling the A3938SLD involves placing a 0.1 μF ceramic capacitor between the VCC and GND pins, as close to the device as possible. Additionally, a 10 μF electrolytic capacitor can be placed in parallel to filter out low-frequency noise.
The A3938SLD has an operating temperature range of -40°C to 150°C, but the device's performance and accuracy may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat dissipation in the system design.
Yes, the A3938SLD is designed to operate in high-vibration environments, but it's crucial to ensure the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
Troubleshooting issues with the A3938SLD involves checking the device's power supply, ensuring proper pin connections, and verifying the system's clock frequency. Allegro provides a troubleshooting guide in their application note AN296065.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A3938SLD Overview

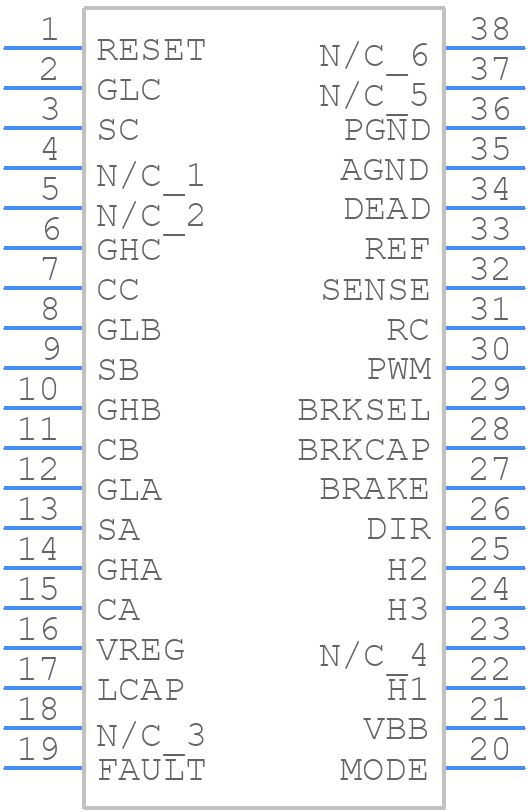

Use the download button to access the A3938SLD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A3938,
or try a keyword search, such as MOSFET Drivers
