A3950SLPTR-T - Allegro Microsystems

Description: DMOS Full Bridge Motor Driver W/Ocp

Download A3950SLPTR-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

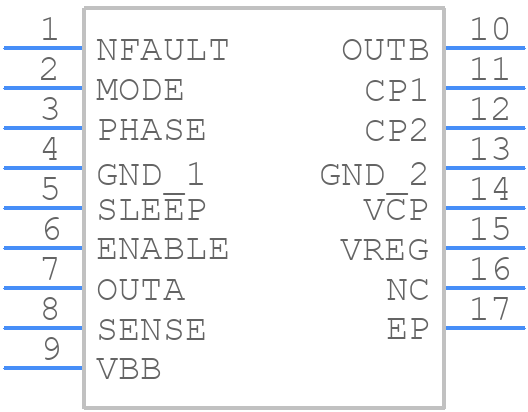

A3950SLPTR-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
A3950SLPTR-T - Allegro Microsystems PCB footprint - Other - Other - 16-Pin TSSOP (Suffix LP) with Exposed Pad
click to zoom
3D Models
A3950SLPTR-T - Allegro Microsystems - 3D model - Other - 16-Pin TSSOP (Suffix LP) with Exposed Pad
click to zoom

A3950SLPTR-T Details

  • Manufacturer Part Number:

    A3950SLPTR-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    8

  • Analog IC - Other Type:

    FULL BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current-Max:

    2.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    36 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4.4 mm

A3950SLPTR-T Frequently Asked Questions (FAQs)

  • A good PCB layout for the A3950SLPTR-T involves keeping the high-current paths short and wide, using a solid ground plane, and placing the device close to the battery. Allegro provides a recommended PCB layout in their application note AN296050.
  • The sense resistor (Rs) should be chosen based on the desired current sense accuracy and the maximum current rating of the device. A smaller Rs value provides better accuracy but increases power loss, while a larger Rs value reduces power loss but decreases accuracy. Allegro provides a sense resistor calculation tool to help with this selection.
  • The A3950SLPTR-T has an operating temperature range of -40°C to 150°C, but the device can be derated for high-temperature operation. Consult the datasheet for derating curves and thermal management guidelines.
  • The A3950SLPTR-T has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. However, additional protection can be achieved by using external components such as TVS diodes or Zener diodes to clamp voltage transients and prevent damage to the device.
  • A 10 μF to 22 μF ceramic capacitor is recommended for the VCC bypass capacitor to ensure stable operation and reduce noise. The capacitor should be placed as close to the VCC pin as possible.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A3950SLPTR-T Overview

Use the download button to access the A3950SLPTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A3950, or try a keyword search, such as Motion Control Electronics
