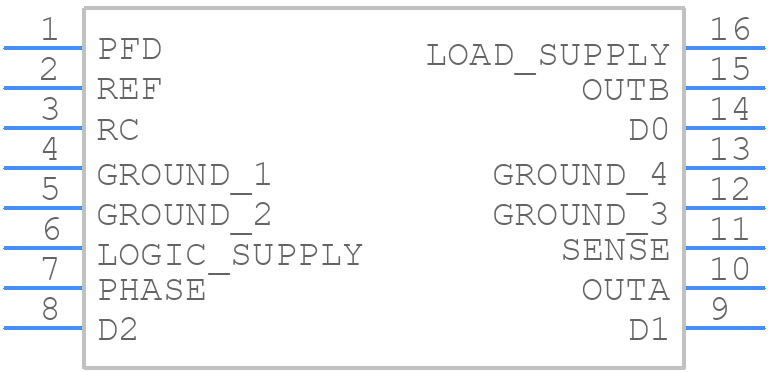

A3955SLB - Allegro Microsystems

A3955SLB Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the A3955SLB?
  A good PCB layout for the A3955SLB involves keeping the high-current paths short and wide, using multiple vias to connect the device to the ground plane, and placing decoupling capacitors close to the device. Allegro provides a recommended PCB layout in their application note AN296070.
• How do I choose the right sense resistor for the A3955SLB?
  The sense resistor (Rs) should be chosen based on the desired current sense accuracy and the maximum current rating of the application. A smaller Rs value provides better accuracy but increases power loss, while a larger Rs value reduces power loss but decreases accuracy. Allegro recommends Rs values between 0.01 ohms and 0.1 ohms.
• What is the purpose of the VREG pin on the A3955SLB?
  The VREG pin is an internal voltage regulator output that can be used to power external circuitry. It is a 5V output with a maximum current rating of 10mA. This pin can be used to power low-current devices, such as sensors or microcontrollers, reducing the need for external power supplies.
• How do I implement overcurrent protection with the A3955SLB?
  The A3955SLB has a built-in overcurrent protection feature that can be enabled by connecting the ISP pin to VCC. The device will then limit the output current to a predetermined value (typically 2.5A) to prevent damage from excessive current. The overcurrent threshold can be adjusted by connecting a resistor between the ISP pin and GND.
• What is the maximum operating temperature range for the A3955SLB?
  The A3955SLB has an operating temperature range of -20°C to 85°C. However, the device can be operated at temperatures up to 150°C for short periods of time (e.g., during motor startup). It is essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
