- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for A3955SLBTR
- Part Number A3955SLBTR
- Manufacturer Allegro Microsystems
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - LB,16-pin SOICW--089
- Released Date Jun 2, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
A3955SLBTR Details
-
Manufacturer Part Number:
A3955SLBTR
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
PLASTIC, SOIC-16
-
Pin Count:
16
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Allegro MicroSystems LLC
-
YTEOL:
0
-
Additional Feature:
ADDITIONAL 5V TO 50V VBB POWER SUPPLY ALSO REQUIRED
-
Analog IC - Other Type:
STEPPER MOTOR CONTROLLER
A3955SLBTR Frequently Asked Questions (FAQs)
-
Allegro recommends a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer to help dissipate heat. Additionally, keeping the device away from other heat sources and using thermal vias can improve thermal performance.
-
To ensure reliable operation in high-vibration environments, Allegro recommends using a robust PCB design, securing the device with a suitable mounting method, and using a vibration-dampening material such as a silicone adhesive or a vibration-absorbing pad.
-
Allegro recommends a soldering profile with a peak temperature of 260°C (500°F) and a dwell time of 10-30 seconds. It's essential to follow the recommended soldering profile to prevent damage to the device.
-
Yes, the A3955SLBTR is AEC-Q100 qualified, which means it meets the stringent requirements for automotive applications. However, it's essential to ensure that the device is used within its specified operating conditions and that the system design meets the relevant automotive standards.
-
To troubleshoot issues with the A3955SLBTR, Allegro recommends checking the device's operating conditions, ensuring proper PCB layout and design, and verifying that the device is used within its specified operating range. Additionally, Allegro provides a range of application notes and technical support resources to help troubleshoot issues.
Trust Checks
Community Provided
System Verified
Community Approved
A3955SLBTR Overview

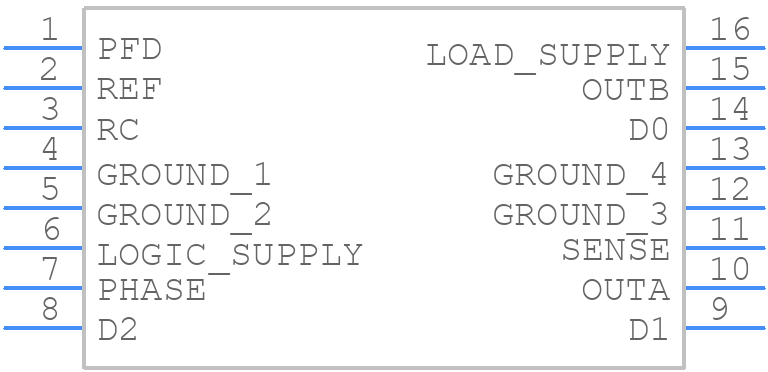

Use the download button to access the A3955SLBTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A3955,
or try a keyword search, such as Motion Control Electronics
