SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
3 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
BCDMOS
Temperature Grade:
OTHER
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
4.4 mm
A3979SLPTR Frequently Asked Questions (FAQs)
A good PCB layout for the A3979SLPTR involves keeping the high-current paths short and wide, using a solid ground plane, and placing decoupling capacitors close to the device. Allegro provides a recommended PCB layout in their application note AN296070, which can be used as a reference.
To ensure proper thermal management, it's essential to provide a good thermal path from the device to a heat sink or the PCB. This can be achieved by using a thermal interface material, such as thermal tape or thermal grease, and attaching a heat sink to the device. The PCB should also be designed to dissipate heat efficiently.
Although the datasheet specifies a recommended operating voltage range of 5.5 V to 50 V, the absolute maximum voltage rating for the VCC pin is 60 V. However, it's essential to note that operating the device at voltages above 50 V may reduce its reliability and lifespan.
The A3979SLPTR is rated for operation up to 150°C, but its performance and reliability may degrade at high temperatures. It's essential to consider the device's thermal management and ensure it's properly cooled to maintain its performance and lifespan.
To troubleshoot issues with the A3979SLPTR, start by verifying the device's input and output voltages, currents, and temperatures. Check the PCB layout and ensure it's correct, and verify that the device is properly thermally managed. Allegro also provides an application note, AN296070, which provides troubleshooting guidelines and tips.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A3979SLPTR Overview

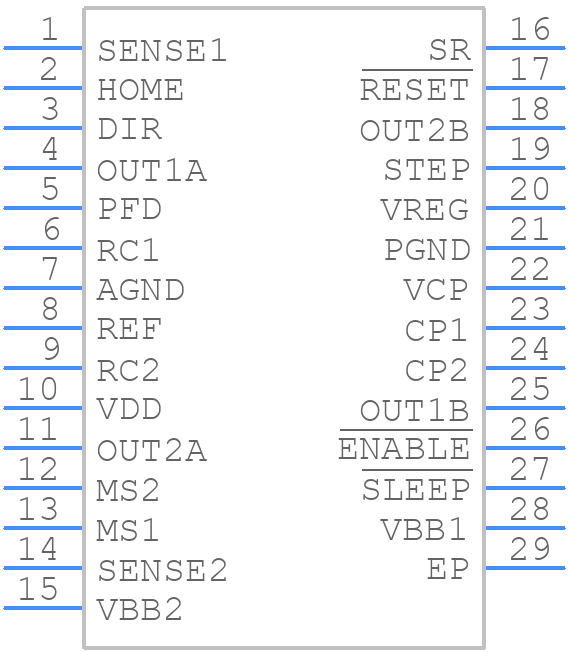

Use the download button to access the A3979SLPTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A3979,
or try a keyword search, such as Motion Control Electronics
