A3980KLPTR-T - Allegro Microsystems

Description: Automotive DMOS Microstepping Driver with Translator

Download A3980KLPTR-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

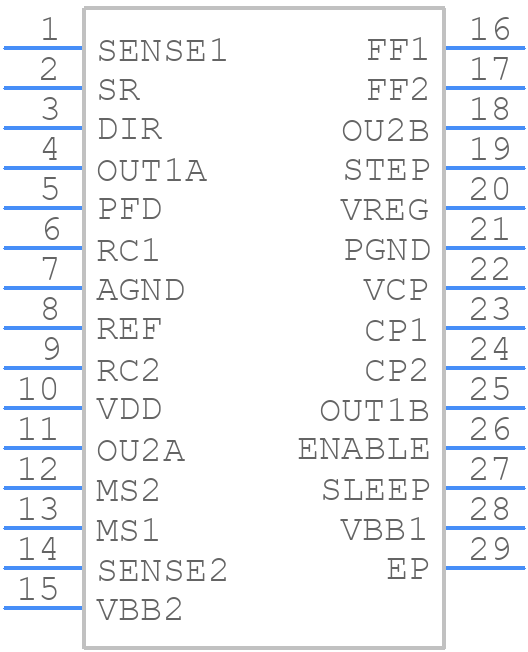

A3980KLPTR-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
A3980KLPTR-T - Allegro Microsystems PCB footprint - Other - Other - LP_28-pin eTSSOP
click to zoom
3D Models
A3980KLPTR-T - Allegro Microsystems - 3D model - Other - LP_28-pin eTSSOP
click to zoom

A3980KLPTR-T Details

  • Manufacturer Part Number:

    A3980KLPTR-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    TSSOP

  • Package Description:

    1.10 MM HEIGHT, LEAD FREE, MO-153AET, TSSOP-28

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Additional Feature:

    ALSO REQUIRES 7V TO 50V VBB SUPPLY

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    12 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    NMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4.4 mm

A3980KLPTR-T Frequently Asked Questions (FAQs)

  • A good PCB layout practice is to keep the high-current paths short and wide, and to use a solid ground plane to reduce EMI. It's also recommended to keep the device away from noise-sensitive components and to use shielding if necessary.
  • The sense resistor value depends on the maximum current and voltage of your application. A good starting point is to use the formula Rsense = 0.05 / Imax, where Rsense is the sense resistor value and Imax is the maximum current. You can then adjust the value based on your specific requirements.
  • The A3980KLPTR-T has an operating temperature range of -40°C to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's recommended to keep the device within a safe operating area to ensure reliability and performance.
  • You can use a voltage regulator or a voltage supervisor to protect the device from overvoltage and undervoltage conditions. Additionally, you can add a TVS diode or a zener diode to absorb voltage spikes and transients.
  • A good starting point is to use a 10uF to 22uF ceramic capacitor with a voltage rating of 10V or higher. The capacitor should be placed as close as possible to the VCC pin to minimize noise and ensure stable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A3980KLPTR-T Overview

Use the download button to access the A3980KLPTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A3980, or try a keyword search, such as Motion Control Electronics
