6 X 6 MM, 0.90 MM HEIGHT, LEAD FREE, MO-220VJJD-1, QFN-36
Pin Count:
36
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Allegro MicroSystems LLC
YTEOL:
0
Analog IC - Other Type:
STEPPER MOTOR CONTROLLER
JESD-30 Code:
S-PQCC-N36
JESD-609 Code:
e3
Length:
6 mm
Moisture Sensitivity Level:
2
Number of Functions:
1
Number of Terminals:
36
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-20 °C
Output Current-Max:
3.5 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Equivalence Code:
LCC36,.25SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1 mm
Supply Current-Max (Isup):
10 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
3 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
40
Width:
6 mm
A3995SEV-T Frequently Asked Questions (FAQs)
Allegro provides a recommended PCB layout in the application note AN296070, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
The maximum current rating for the A3995SEV-T depends on the package type, ambient temperature, and PCB layout. Allegro provides a current rating calculator tool on their website, which takes into account these factors to provide a safe operating current limit.
The recommended input capacitor value for the A3995SEV-T is 10uF to 22uF, with a voltage rating of at least 25V. A larger capacitor value can help to reduce input ripple and improve overall system stability.
Allegro provides a troubleshooting guide in the application note AN296070, which includes steps to identify and resolve common issues such as incorrect pin connections, inadequate power supply, and thermal shutdown.
Yes, the A3995SEV-T is AEC-Q100 qualified and suitable for automotive applications. However, it's essential to ensure that the device is used within the recommended operating conditions and follows the guidelines outlined in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A3995SEV-T Overview

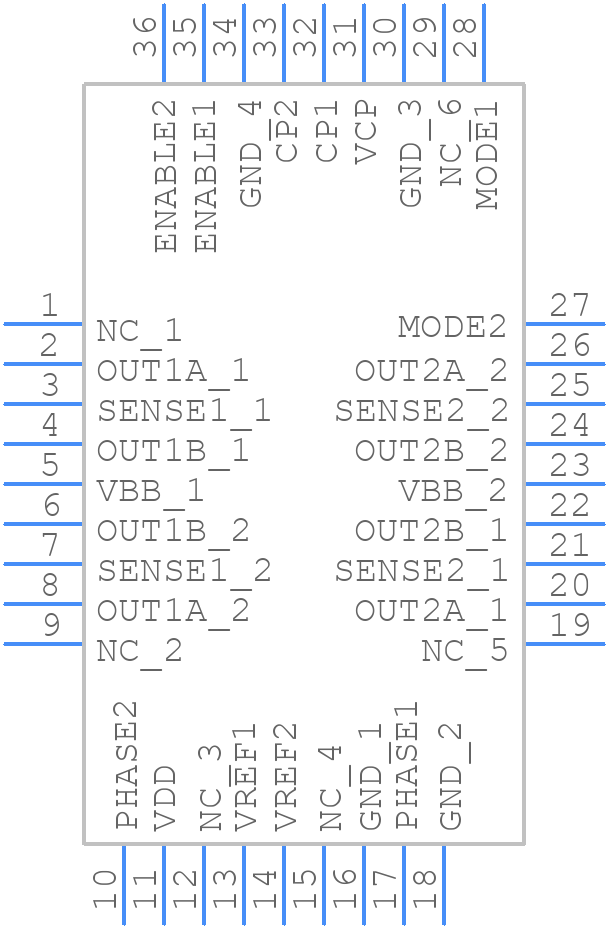

Use the download button to access the A3995SEV-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A3995,
or try a keyword search, such as Motion Control Electronics
