A3C-20DA-2DSC(71) - Hirose

Description: Hirose A3C Series 2mm 20 Way 2 Row Straight PCB Socket Through Hole Board to Wire

Download A3C-20DA-2DSC(71) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
A3C-20DA-2DSC(71) - Hirose - PCB symbol
click to zoom
PCB Footprints

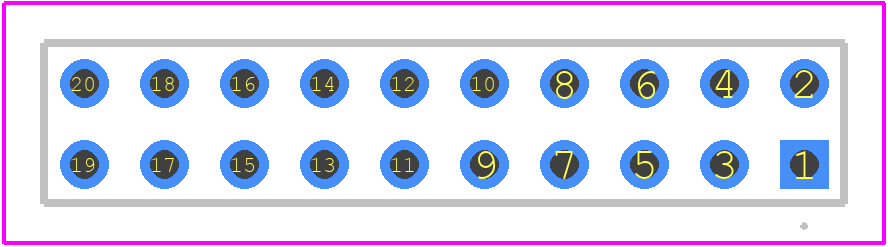

A3C-20DA-2DSC(71) - Hirose PCB footprint - Other - Other - A3C-20DA-2DSC(71)-2
click to zoom
3D Models
A3C-20DA-2DSC(71) - Hirose - 3D model - Other - A3C-20DA-2DSC(71)-2
click to zoom

A3C-20DA-2DSC(71) Details

  • Manufacturer Part Number:

    A3C-20DA-2DSC(71)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8

  • Connector Type:

    BOARD CONNECTOR

A3C-20DA-2DSC(71) Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m (0.37 lbf·in to 1.06 lbf·in).
  • Yes, the A3C-20DA-2DSC(71) is designed to withstand vibrations and can be used in high-vibration applications. However, it's recommended to consult with Hirose Electric Co Ltd for specific vibration testing and validation.
  • The operating temperature range for the A3C-20DA-2DSC(71) is -40°C to 105°C (-40°F to 221°F).
  • Yes, the A3C-20DA-2DSC(71) is designed to be used in harsh environments and can withstand exposure to dust, moisture, and other environmental factors. However, it's recommended to consult with Hirose Electric Co Ltd for specific environmental testing and validation.
  • The mating cycle rating for the A3C-20DA-2DSC(71) is 500 cycles.
