A3G4250DTR - STMicroelectronics

Description: MEMS motion sensor: 3-axis digital output gyroscope

Download A3G4250DTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

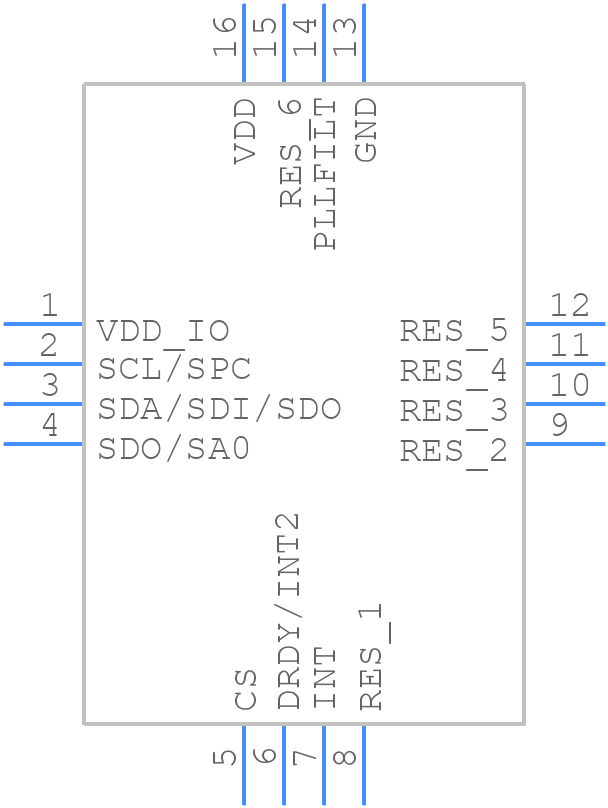

A3G4250DTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
A3G4250DTR - STMicroelectronics PCB footprint - Other - Other - LGA-16L(4x4x1.1MM)
click to zoom
3D Models
A3G4250DTR - STMicroelectronics - 3D model - Other - LGA-16L(4x4x1.1MM)
click to zoom

A3G4250DTR Details

  • Manufacturer Part Number:

    A3G4250DTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3.15

  • Body Breadth:

    4 mm

  • Body Height:

    0.855 mm

  • Body Length or Diameter:

    4 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    DIGITAL

  • Output Type:

    DIGITAL OUTPUT

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    LGA16,4X4,25

  • Package Shape/Style:

    SQUARE

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    MOTION SENSOR

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.4 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Gold (Ni/Au) - electrolytic

A3G4250DTR Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the A3G4250DTR is -40°C to 85°C.
  • The A3G4250DTR can be configured for I2C or SPI interface by setting the appropriate pins (e.g. CS, SCL, SDA) and using the correct protocol for communication. Refer to the datasheet and application notes for specific configuration details.
  • The maximum sampling rate of the A3G4250DTR is 10 kHz for the accelerometer and 34 kHz for the gyroscope.
  • Calibration of the A3G4250DTR involves adjusting the sensitivity and offset of the accelerometer and gyroscope. This can be done using the built-in self-test function or through external calibration procedures. Refer to the datasheet and application notes for specific calibration procedures.
  • The power consumption of the A3G4250DTR is typically around 6.1 mA in normal mode and 1.5 mA in low-power mode.
