Microchip provides a recommended PCB layout guide for the A3P1000-FGG256M in the 'PCB Design Guidelines' document, which can be found on their website. It recommends a 4-layer PCB with a solid ground plane, thermal vias, and a heat sink attached to the top of the device.
A reliable POR circuit can be implemented using an external voltage supervisor IC, such as the Microchip TC803, which can detect power-on and power-down conditions and generate a reset signal to the A3P1000-FGG256M. The datasheet provides more information on POR requirements.
The internal oscillator has a limited frequency range and accuracy, and may not be suitable for all applications. If a higher frequency or tighter frequency tolerance is required, an external clock source should be used. The datasheet provides more information on the internal oscillator's specifications and limitations.
To optimize power consumption, use the device's power-saving features, such as clock gating, dynamic voltage and frequency scaling, and sleep modes. Additionally, optimize the system's clock frequency, voltage, and peripheral usage to minimize power consumption. The datasheet provides more information on power-saving features and guidelines.
When designing a JTAG interface, ensure that the signal lines are properly terminated, and that the voltage levels and signal integrity are maintained. Use a JTAG adapter or a dedicated JTAG interface IC, such as the Microchip DV007004, to ensure reliable communication with the device. The datasheet provides more information on JTAG interface requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A3P1000-FGG256M Overview

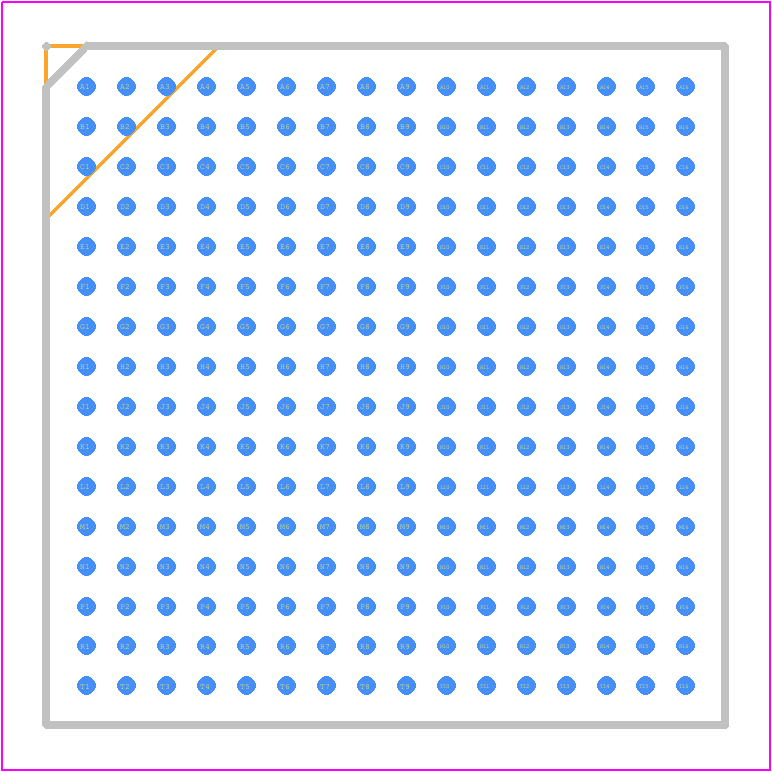

Use the download button to access the A3P1000-FGG256M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A3P10,
or try a keyword search, such as Field Programmable Gate Arrays
